Super-TIGER II (Trans-Iron Galactic Element Recorder)
Developed by Washington University in St. Louis (WUSTL) / Goddard Space Flight Center (GSFC) / California Institute of Technology / Jet Propulsion Lab (JPL) / University of Minnesota
Balloon launched on 12/15/2019, from Williams Field, McMurdo Station, Antarctica
Purpose of the flight and payload description
The SuperTIGER instrument was developed to accurately measure the abundances of ultra-heavy, trans-iron Galactic Cosmic Ray nuclei. This instrument is an enlarged and higher resolution version of the earlier TIGER instrument that was flown over Antarctica twice in early 2000's.
SuperTIGER was designed for simple assembly, easy launch, and used no consumables. SuperTIGER has the largest geometric acceptance readily achievable for an instrument meeting the weight limits for flight on a standard stratospheric balloon. The full instrument weight was 1770 kg. SuperTIGER incorporated a detector suite selected for excellent charge resolution of ultra-heavy galactic cosmic-ray (UHGCR) nuclei, minimal nuclear interactions, minimum weight, and large geometric acceptance. The techniques used to measure charge and energy were identical to those employed by TIGER, but the implementation has been improved.
SuperTIGER (as did TIGER) used plastic scintillators, acrylic Cherenkov counters, and silica-aerogel Cherenkov counters to determine the element species and kinetic energy of incident particles. Scintillating optical fiber hodoscopes at the top and bottom of the detector stack measured the trajectories of particles transiting the instrument for angle corrections and mapping.
For SuperTIGER the scintillator and Cherenkov detector enclosures were floored with an ultra-low-density foam/aluminum-foil composite developed at NASA GSFC, which was also used to support the hodoscope. The tops of the scintillator, Cherenkov, and hodoscope enclosures were made of thin Al foil.

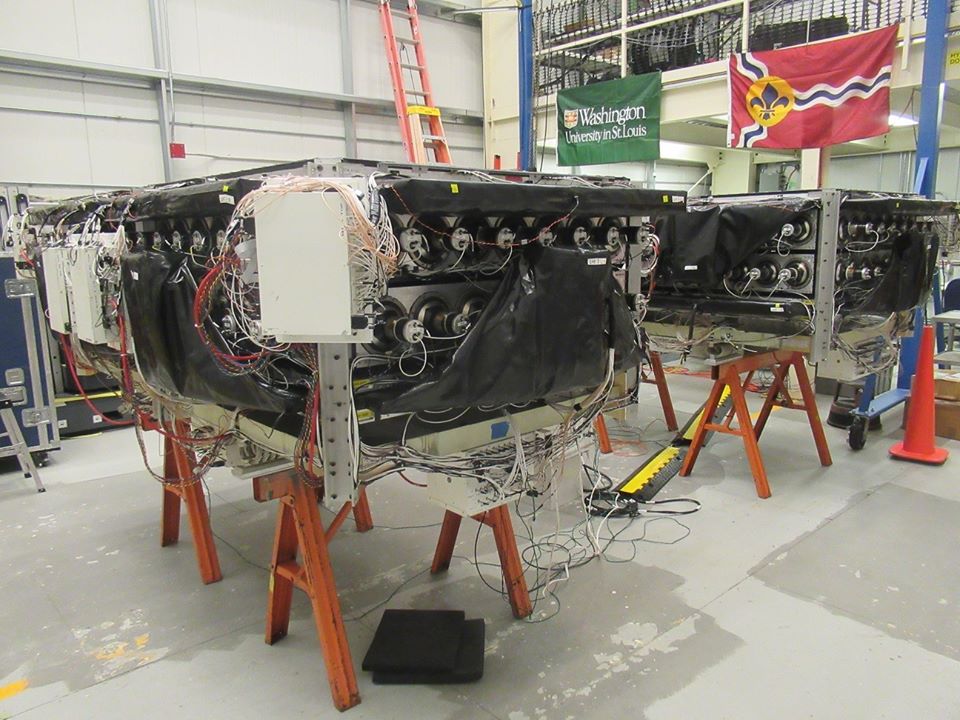

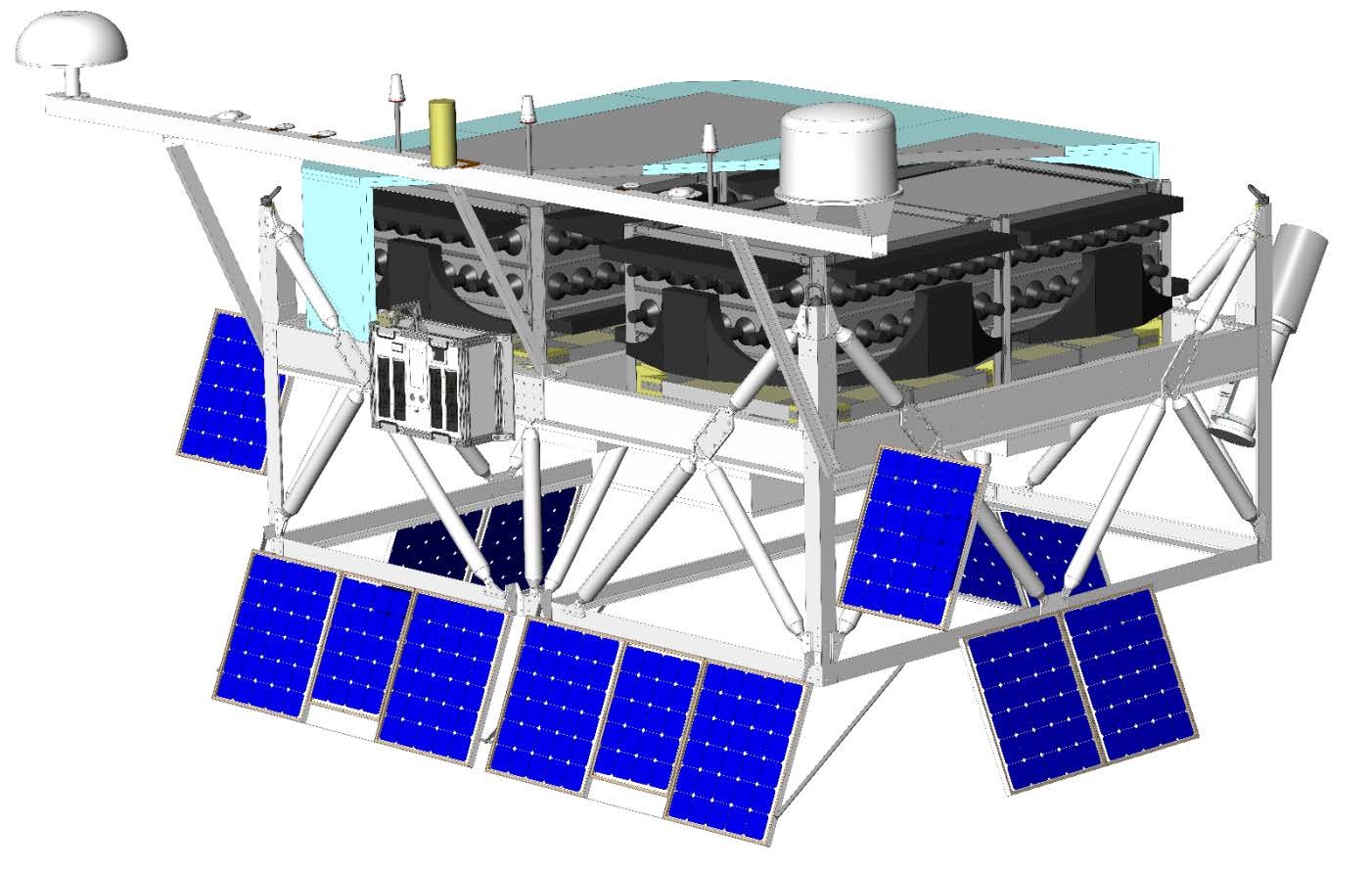

To improve detector performance and add redundancy for enhanced reliability, SuperTIGER was divided into two completely independent modules, as shown in the figure above. Each module can be mechanically disassembled to a half-module subsystem to enable recovery with any available aircraft in Antarctica.
Video footage of the launch
Details of the balloon flight

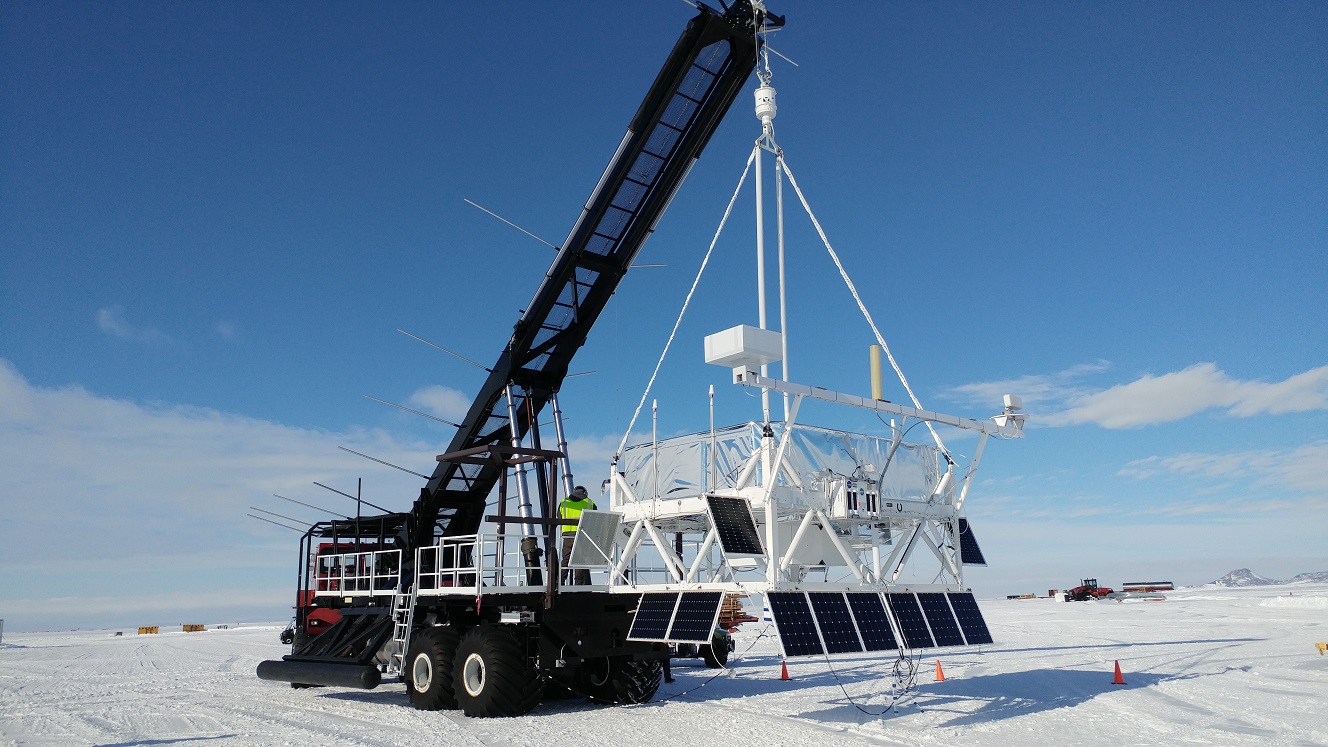

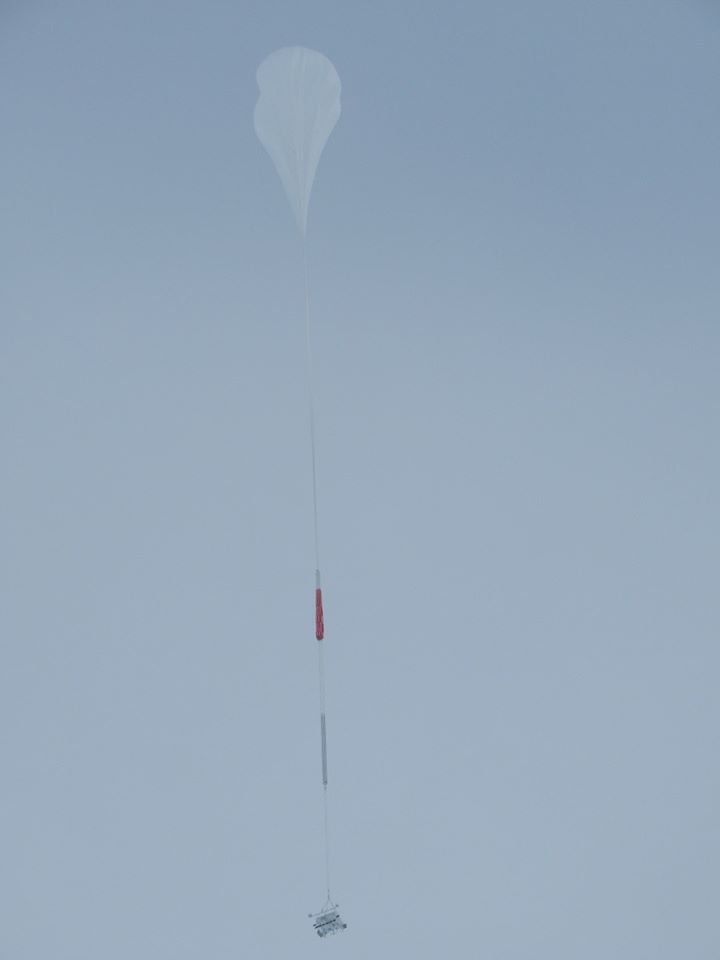

Balloon launched on: 12/15/2019 at 2:55 NZDT Launch site: Williams Field, McMurdo Station, Antarctica
Balloon launched by: Columbia Scientific Balloon Facility (CSBF) Balloon manufacturer/size/composition: Zero Pressure Balloon Raven Aerostar - W39.57 (39.500.000 cuft) Flight identification number: 706N End of flight (L for landing time, W for last contact, otherwise termination time): 1/17/2020 at 00:15 utc

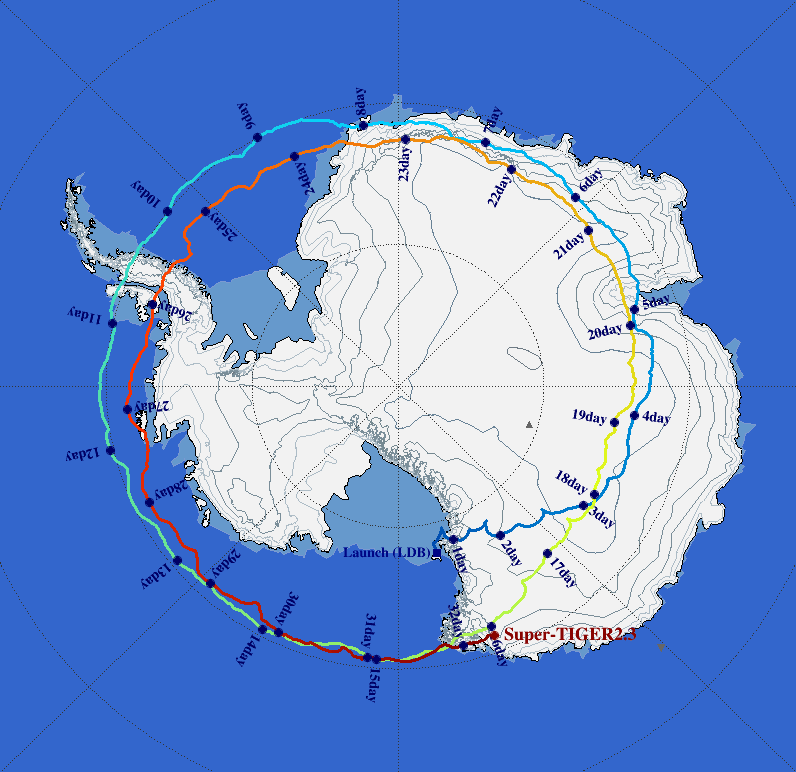

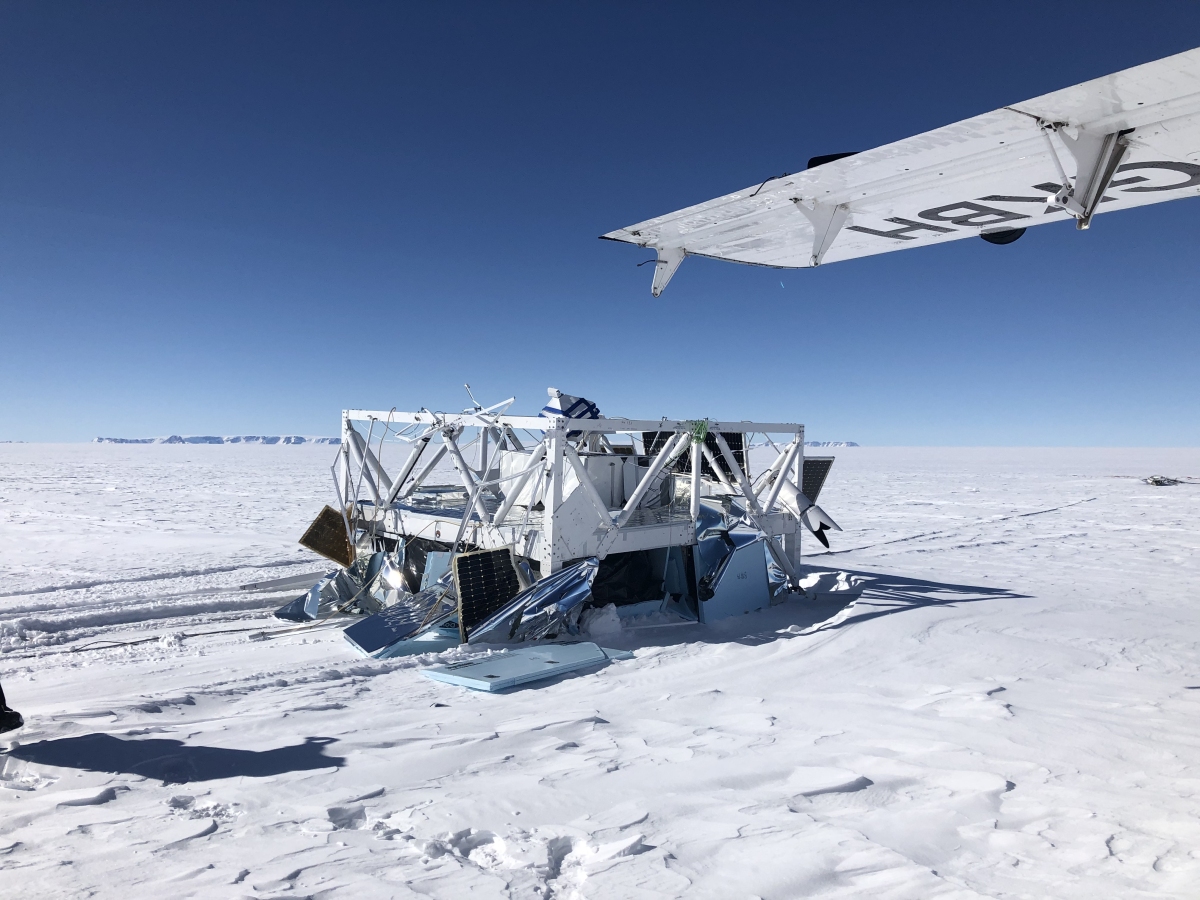

Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 32 d 23 h Landing site: In the Antarctic Plateau at coordinates 71°7.53 S - 158°35.10 E
