Purpose of the flight and payload description

D-SEND stands for Drop test for Simplified Evaluation of Non-symmetrically Distributed sonic boom and was a project carried out by the Aviation Program Group of the Japanese Space Agency JAXA between 2011 and 2015. It comprised a set of flight demonstrations of low sonic boom design technology which, as a key component of environmental compatibility, was considered as a high priority issue in the research and development of silent supersonic technology.

The D-SEND project was composed of two series of drop tests from a stratospheric balloon denominated D-SEND#1 and D-SEND#2. In the D-SEND#1 series, two different axisymmetric bodies were dropped and the sonic booms were measured and compared with each other. In the D-SEND#2 series, an experimental supersonic airplane model (unmanned aircraft with no engine and capable of autonomous flight) based on JAXA's low sonic boom design technology was dropped and the sonic boom was measured. In both series the sonic booms were measured and recorded by a microphone system that was tied to a line between the ground and a blimp floating at an altitude of 1 kilometer. These drop tests were carried out at the Esrange Test Site near Kiruna in Sweden.

Video description of the mission

Details of the balloon flight

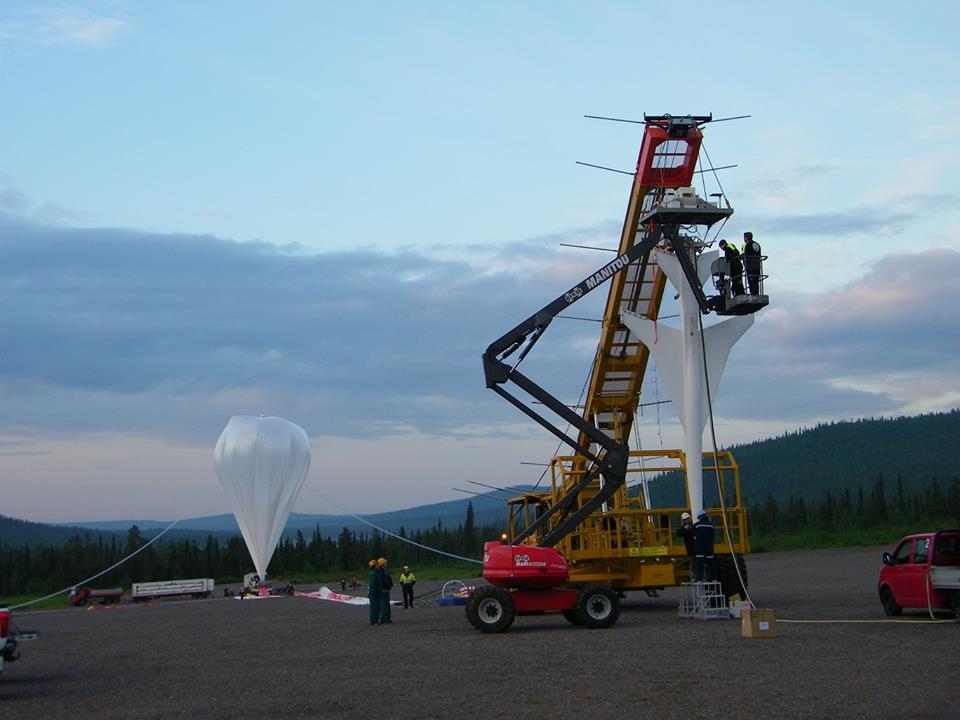

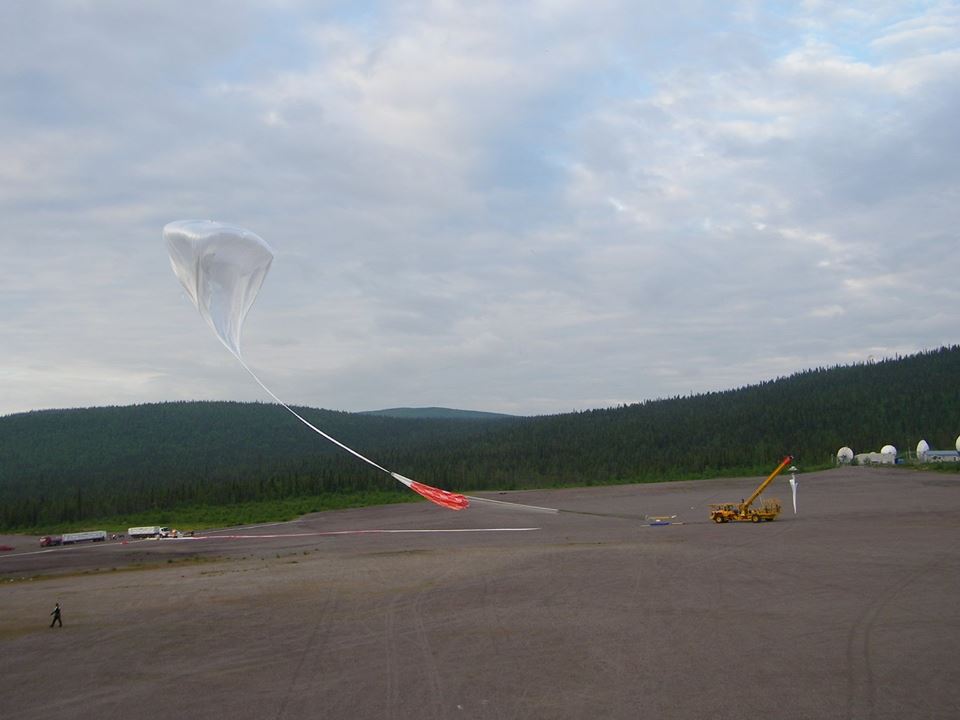

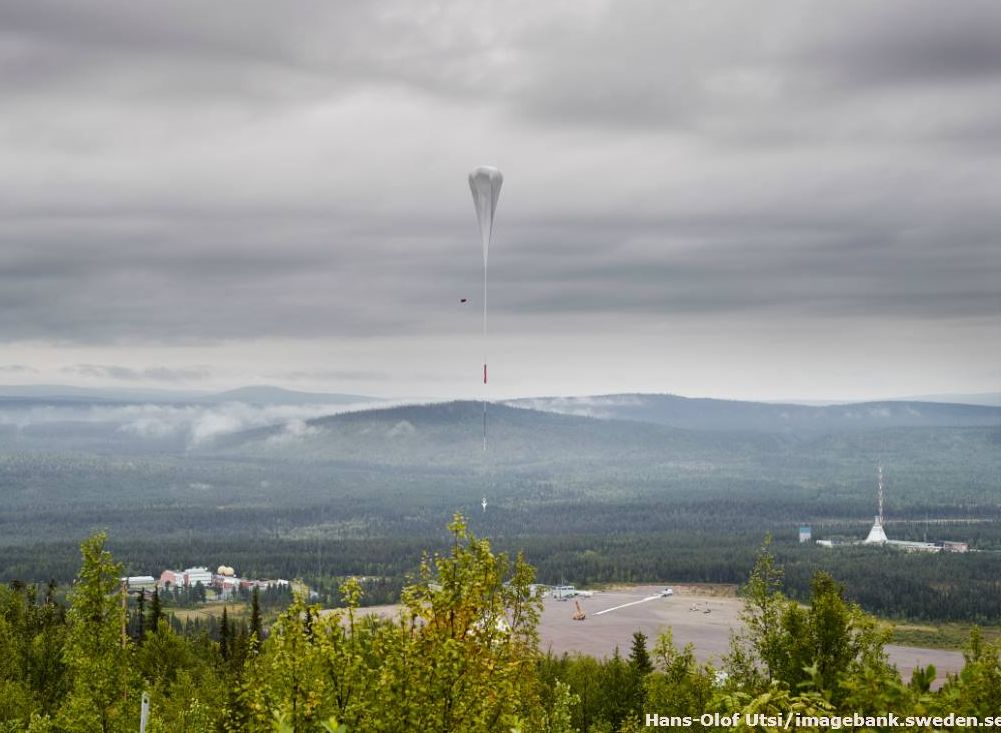

Balloon launched on: 7/24/2015 at 4:43 utc
Launch site: European Space Range, Kiruna, Sweden
Balloon launched by: Swedish Space Corporation (SSC)
Balloon manufacturer/size/composition: Zero Pressure Balloon
End of flight (L for landing time, W for last contact, otherwise termination time): 7/24/2015 at 10:00 utc

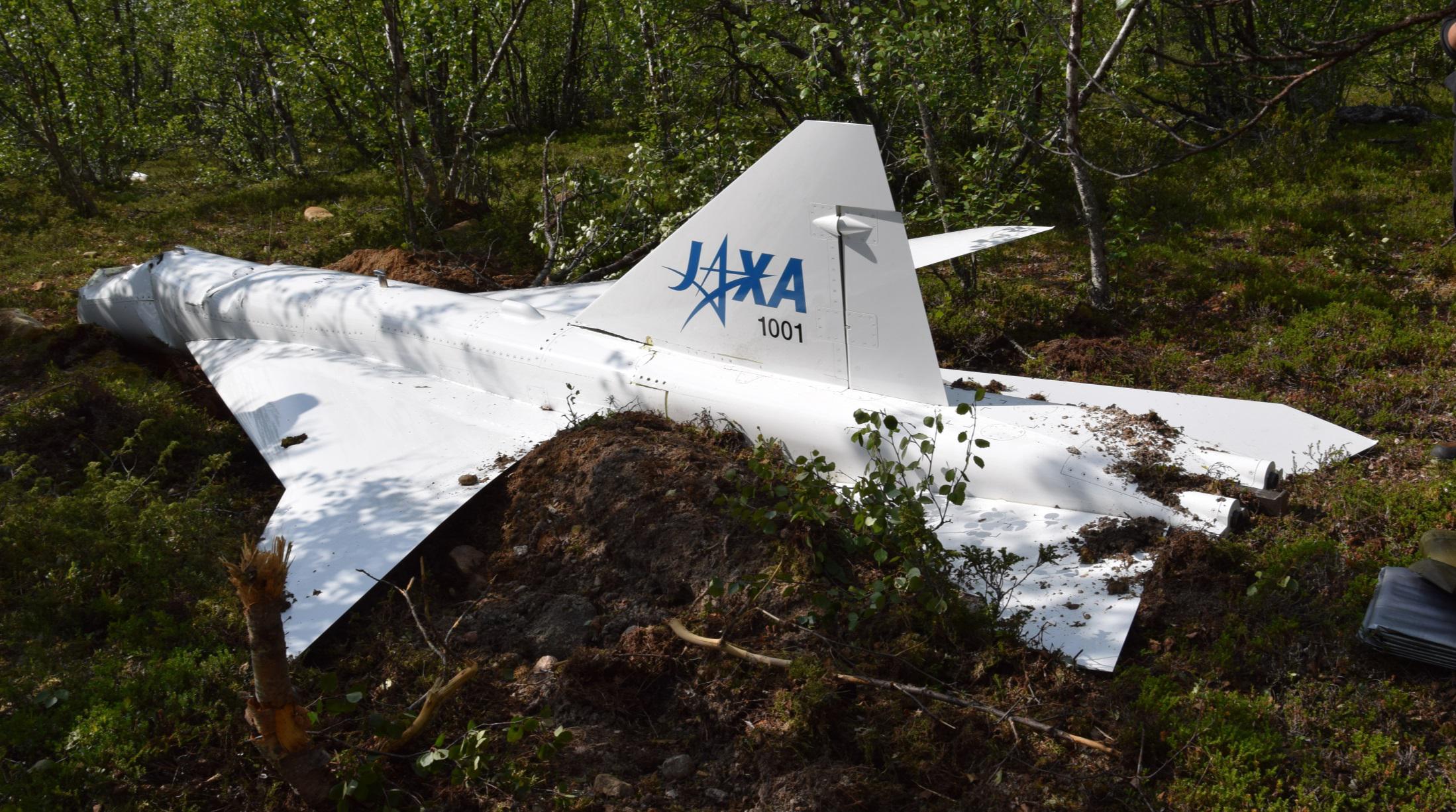

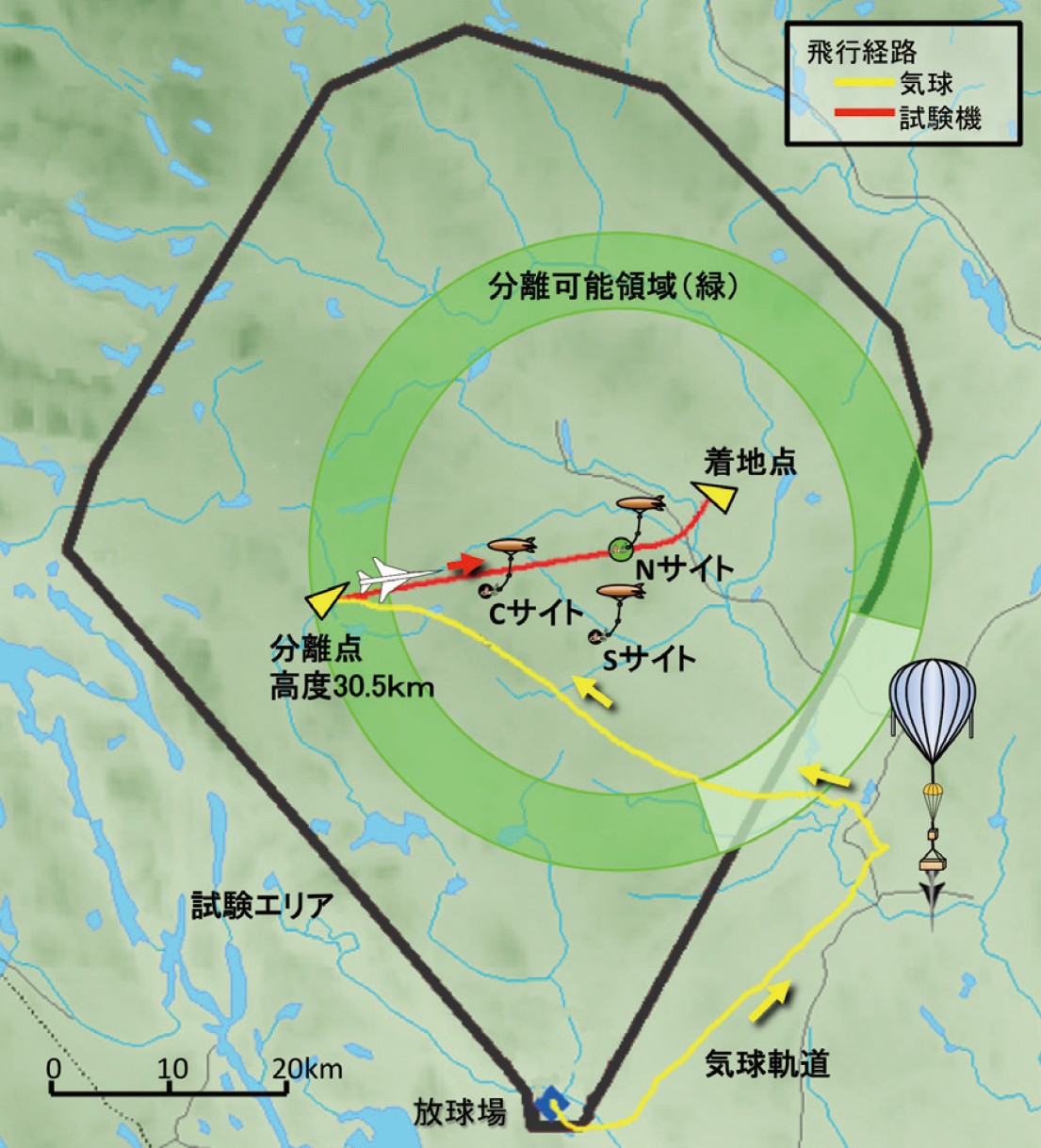

The second series of drop tests od the D-SEND project involved an experimental supersonic airplane (unmanned aircraft with no engine and capable of autonomous flight) designed utilizing JAXA's proprietary low sonic boom design technology. It was meant to be dropped from a balloon at an altitude of 30 km. The unmanned aircraft would glide over the boom measurement systems at Mach 1.3 and a flight-path angle of 50 degrees, where the generated boom signature goes down vertically toward the systems. The sonic boom would be measured by a series of boom measurement systems held at an altitude of 1 km by tethered balloons.

This was the second tests of the D-SEND2 series after a first attempt that failed in 2013.

External references

Images of the mission
