Developed by Columbia Scientific Balloon Facility (CSBF)
Balloon launched on 9/4/2015, from Scientific Flight Balloon Facility, Fort Sumner, (NM), US
Purpose of the flight and payload description

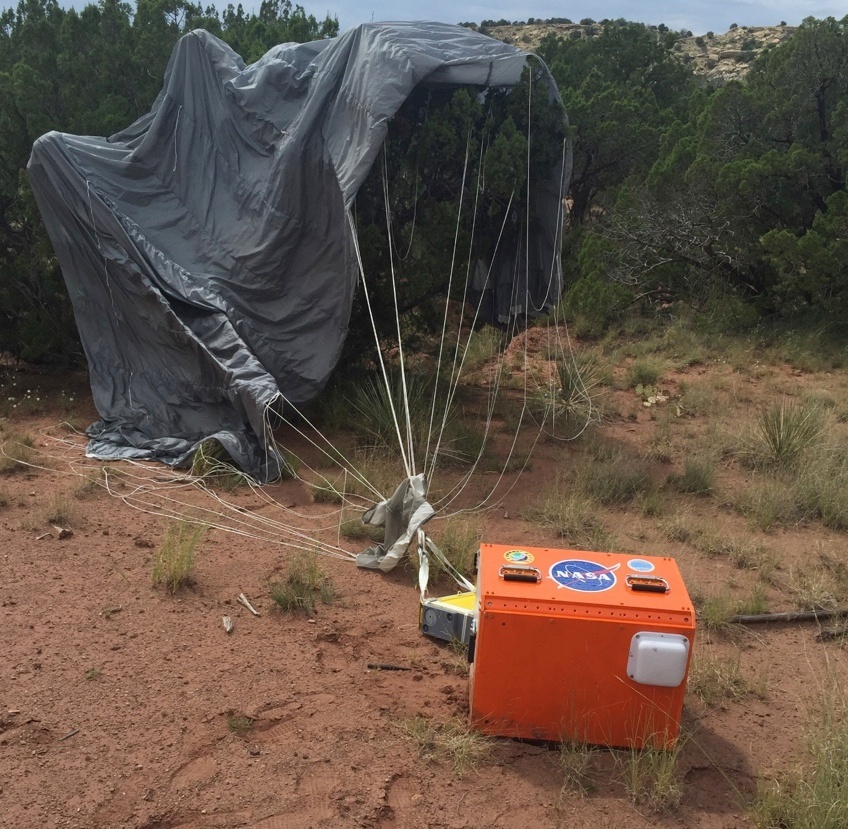

The main objective of the flight was to test a new parachute device designed to immediately deflate the parachute after the payload lands thus avoiding the possibility of the payload being drag over the ground if the parachute is caught by the wind and acts like a sail.

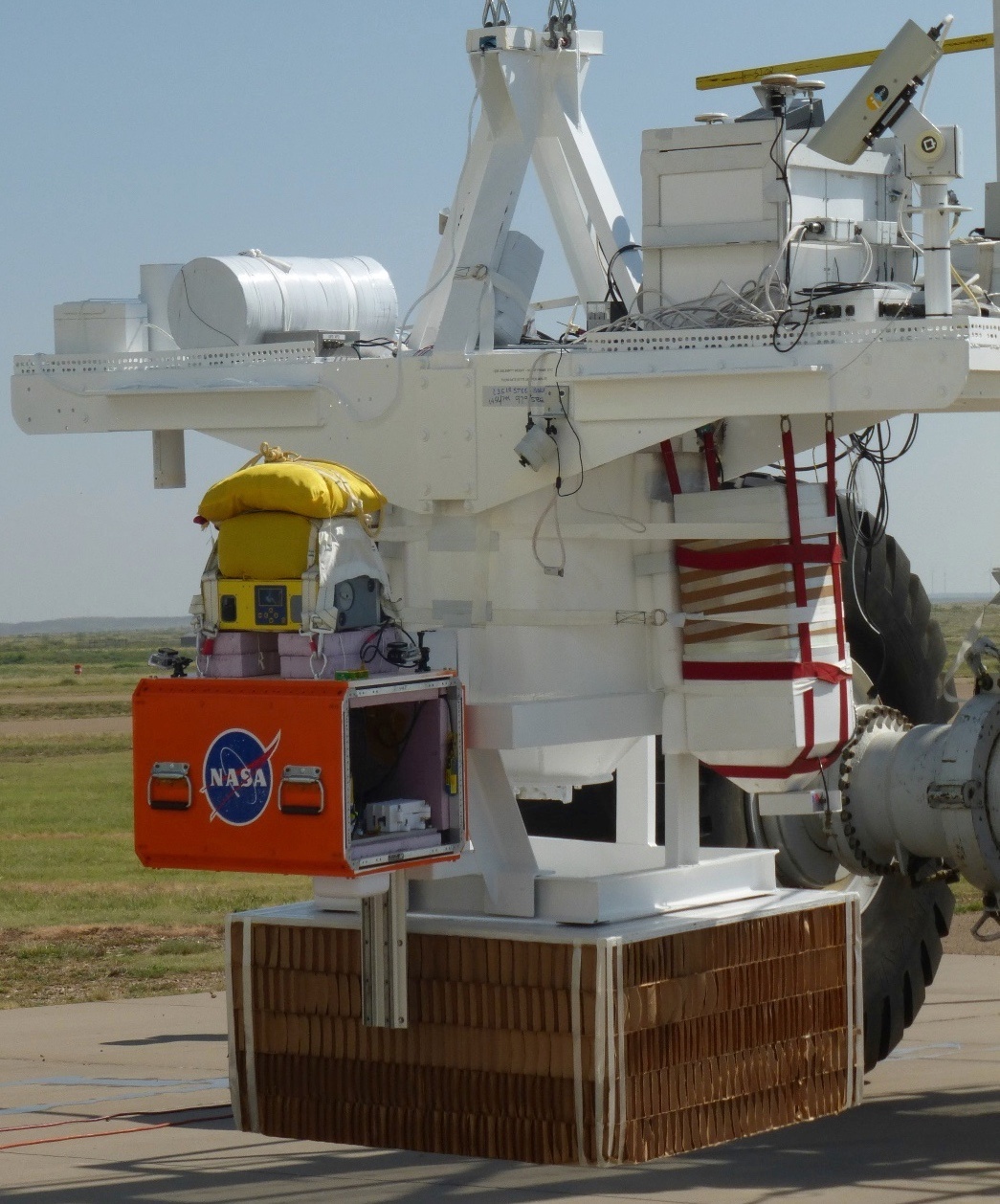

Also were onboard three experiments as missions of opportunity:
ANS (Advanced Neutron Spectrometer) developed by NASA's Marshall Space Flight Center to support future manned exploration missions. It uses a refined gate and capture technique that significantly improves the identification of neutrons in mixed radiation fields found in spacecraft, habitats and on planetary surfaces. The instrument is a composite scintillator comprised of PVT loaded with litium-6 glass scintillators. The objective of the flight was to evaluate trigger (identify neutrons, reject gamma rays and charged particles) and measure atmosphere neutron spectrum.
LBRSP (Large Balloon Reflector Sensing Package) developed by the University of Arizona. It is part of the large balloon reflector project: a 10-meter aperture (20-meter diameter), inflatable, spherical THz antenna designed to fly on a large scientific balloon at 120,000 to 130,000 feet. As part of the initiative two instrument packages -one on the apex, the other on the gondola- were included to measure balloon dynamics thus obtaining quantitative evidence that locating the future LBR within the carrier balloon instead of tethering it below the payload gondola provided a sufficient pointing stability advantage to warrant the additional operational complexity.
ANGEL (Autonomously Navigated paragliding Experimental Lander) developed at NASA's Glenn Research Center a drop package designed to demonstrate a controlled descent of a high altitude balloon payload to a predetermined landing zone using an Airborne Systems Microfly guided precision ram-air canopy controlled by an automated guidance unit.

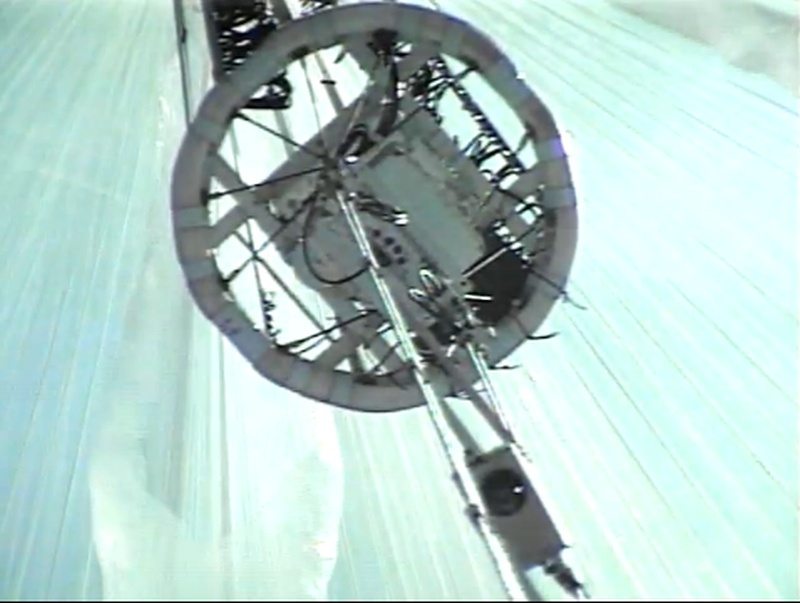

Time lapse of onboard cameras from launch to landing
Details of the balloon flight

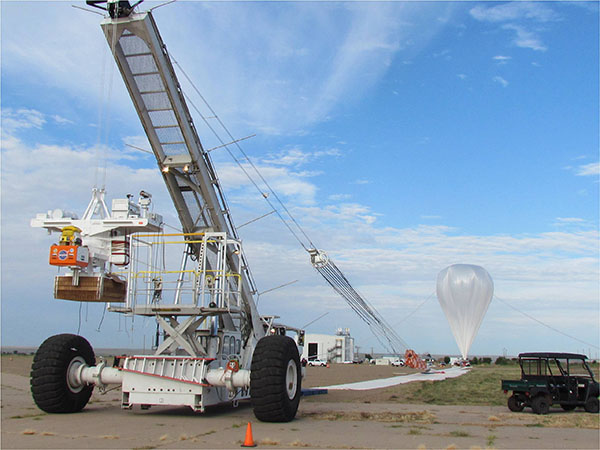

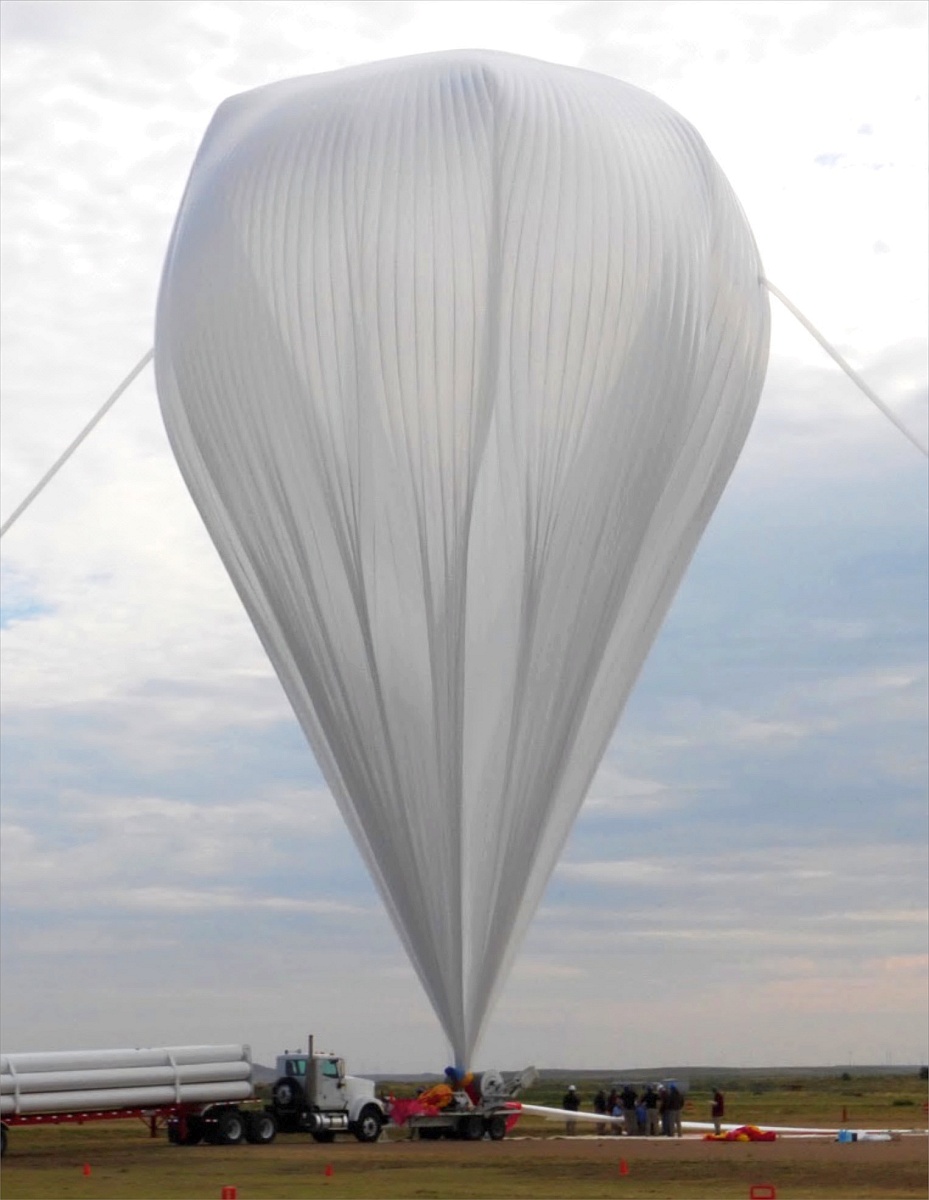

Balloon launched on: 9/4/2015 at 14:55 utc Launch site: Scientific Flight Balloon Facility, Fort Sumner, (NM), US
Balloon launched by: Columbia Scientific Balloon Facility (CSBF) Balloon manufacturer/size/composition: Zero Pressure Balloon Raven - 29.470.000 cuft Flight identification number: 664NT End of flight (L for landing time, W for last contact, otherwise termination time): 9/4/2015 at 22:40 utc

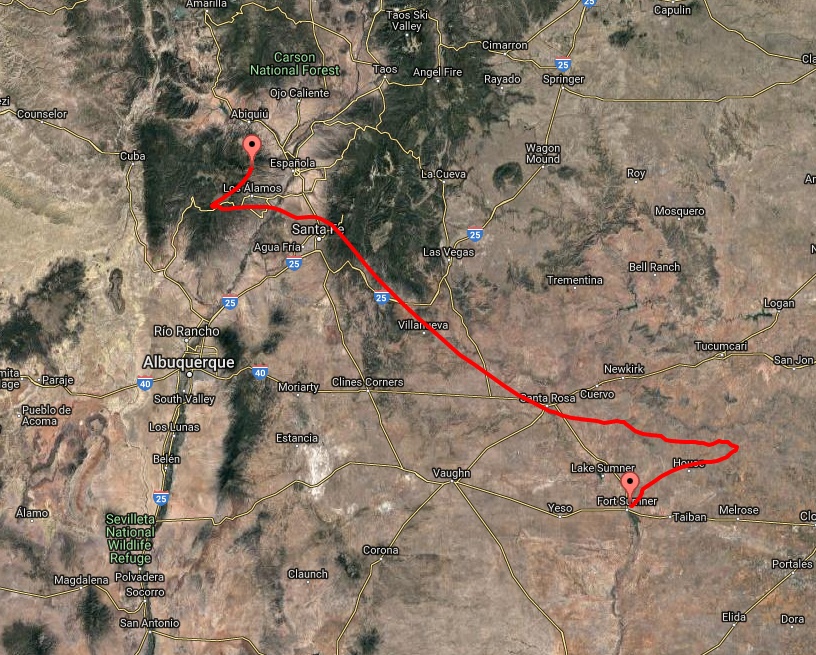

Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 7 h 45 m Landing site: North of Los Alamos, New Mexico, US
