Balloon launched on 12/29/2012, from Williams Field, McMurdo Station, Antarctica
Purpose of the flight and payload description
EBEX is a balloon-borne polarimeter designed to obtain measurements of the cosmic microwave background radiation (CMB) that would probe the inflationary epoch that took place shortly after the big bang. A promising way to confirm that model is via its prediction of a stochastic background of gravity waves, called the inflationary gravitational-wave background (IGB) . The best known way to search for the IGB is through its signature on the CMB polarization.
EBEX is unique among CMB polarization experiments because it have the broadest frequency coverage of all current and proposed bolometric CMB polarimeters giving it an unprecedented capability to characterize the polarized dust emission and determine its angular power spectra in both E and B-type polarizations, and providing an important milestone in the implementation and testing of hardware and techniques that are being considered for a future NASA CMB polarization satellite.
EBEX employ a 1.5 m telescope to focus the incoming radiation on up to four separate focal planes, each containing hundreds of Transition Edge Sensors (TES) spider web bolometers. The experiment operates at four frequency bands, centered on 150, 250, 350, and 450 GHz.
The bolometers are grouped in arrays of 55 TES bolometers. A 330 element TES array is built by tiling six 55 element arrays to fill one of the four focal planes. They are cooled at a temperature of 300 mK in a bath of liquid helium or nitrogen provided by a cryostat.
The EBEX optical system consists of the well-characterized Archeops 1.5 m aperture primary mirror with the addition of a brand new 1.2 m elliptical secondary that together make a Dragone telescope.
Four cold lenses (made of silicon and high density polyethilene), a dichroic filter and two polarizing grids focuses the incoming radiation and after being filtered, the differents frequencies are fed to different parts of the four focal planes.
Two focal planes with up to a total of 660 TES detectors are allocated for the 150 GHz band while the other two focal planes with a similar number of detectors are allocated for the three higher frequency bands. For each of the frequency bands, bandpass filters mounted in front of the focal plane will define the exact band shape.
To modulate the polarization signal EBEX uses a combination of a rotating half-wave plate (HWP) and a fixed polarizing grid because this technique provides strong discrimination against systematic errors. To date all successful non-interferometric measurements of IR and mm-wave polarization have used a HWP to modulate the polarization signal.

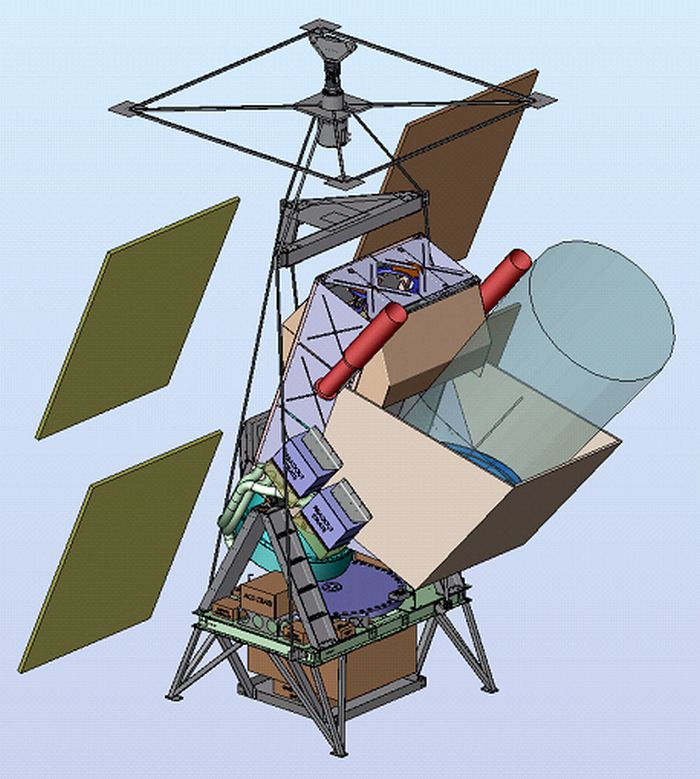

The instrument is mounted in a specially built gondola designed at SSL Berkeley and integrated at the Nevis Lab at Columbia University. Above left can be seen an scheme of it (click to enlarge).
It uses a cable based suspension system which connects EBEX to the balloon throught a rotor. It isolates the gondola from any movement coming from the balloon, counteracting the rotation momentum through a reaction wheel located in the bottom of the gondola. The system rotates around the vertical axis to cover great portions of sky, while can be steered too in azimuth through an elevator actuator.
As the pointing system was modeled based on other succesful experiments like BLAST, MAXIMA and BOOMERANG the primary real time sensors of the system is composed of a Star Camera, 3 fiberoptic Gyros, and a magnetometer or sun sensor while the primary reconstructions sensors (that provide the fine pointing data to be used for post flight data analysis) are the Star camera and several gyroscopes.
Video footage of the launch
Details of the balloon flight

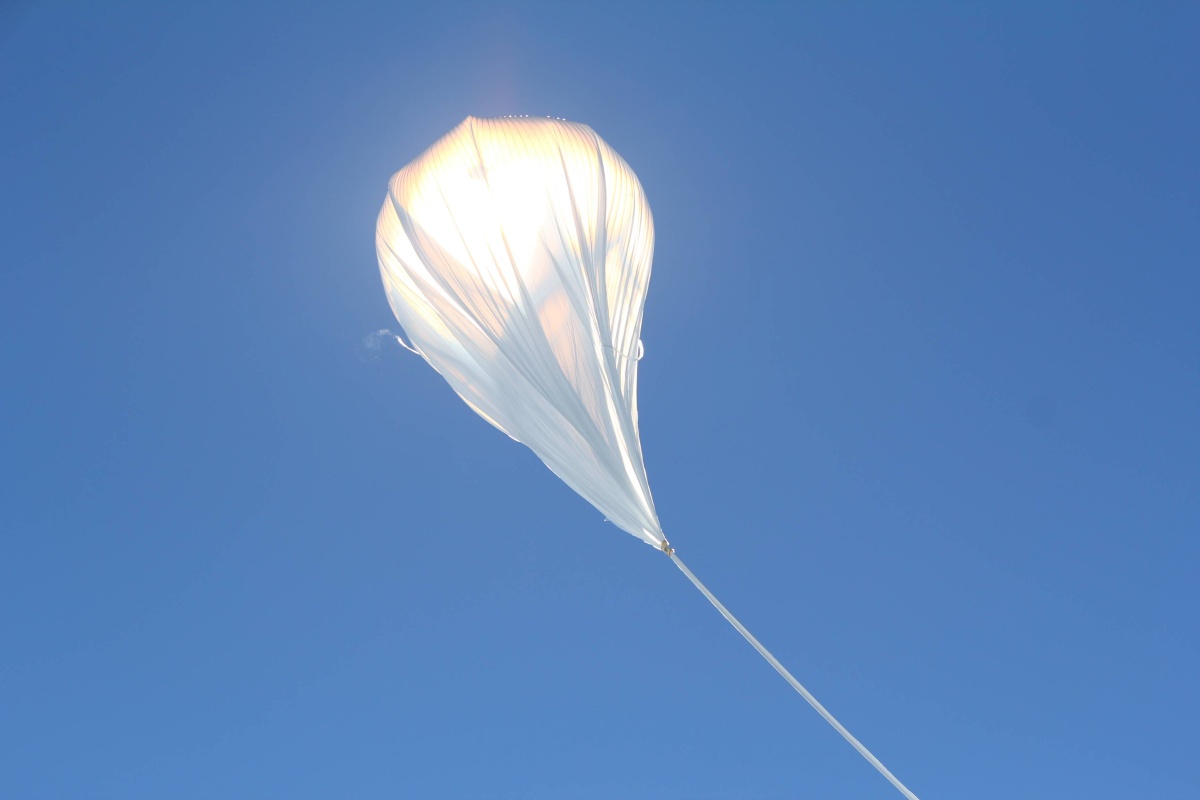

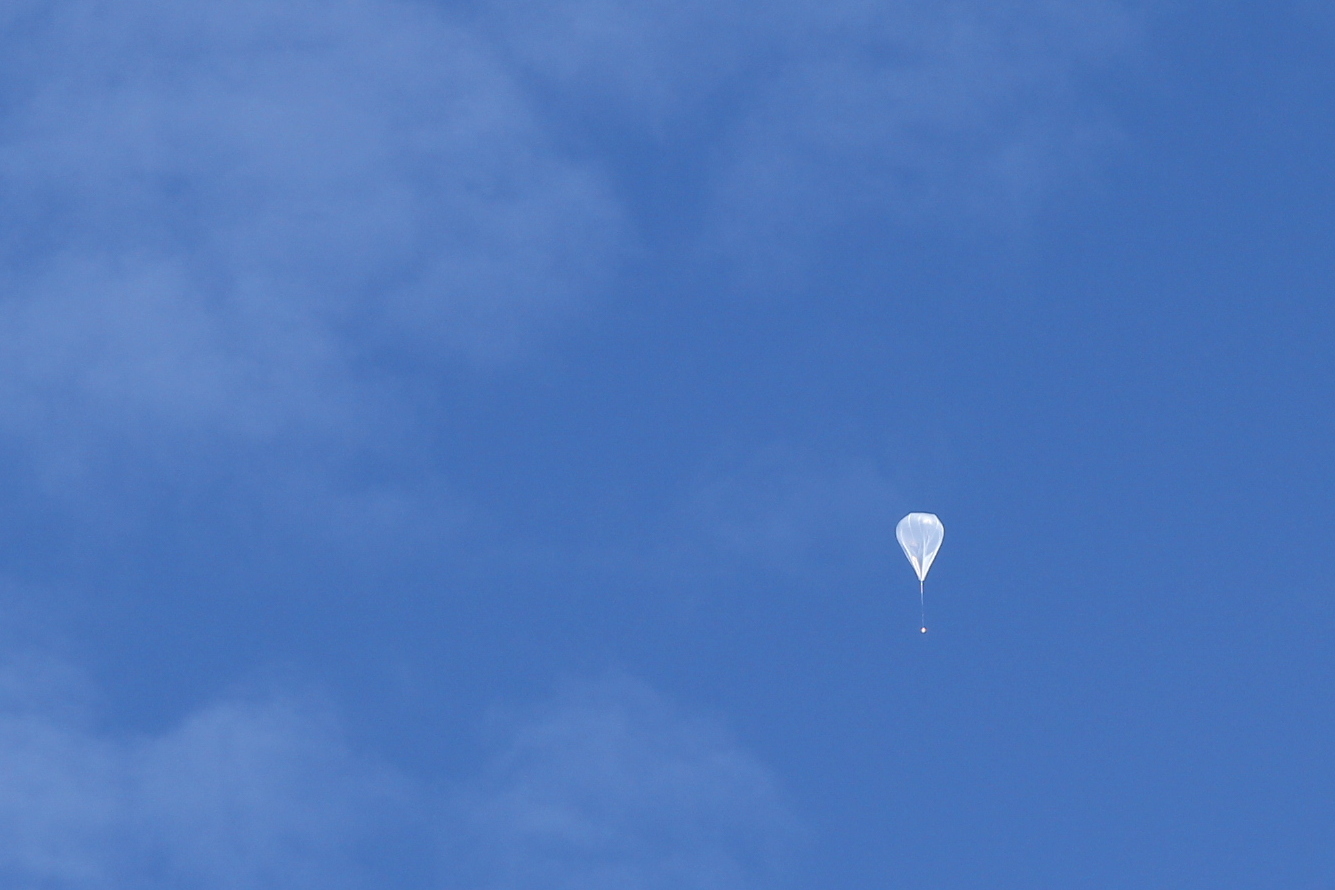

Balloon launched on: 12/29/2012 at 2:30 utc Launch site: Williams Field, McMurdo Station, Antarctica
Balloon launched by: Columbia Scientific Balloon Facility (CSBF) Balloon manufacturer/size/composition: Zero Pressure Balloon Flight identification number: 639N End of flight (L for landing time, W for last contact, otherwise termination time): 1/23/2013 at 11:28 utc

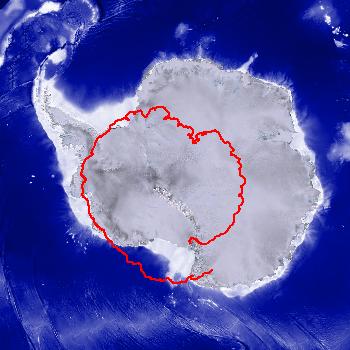

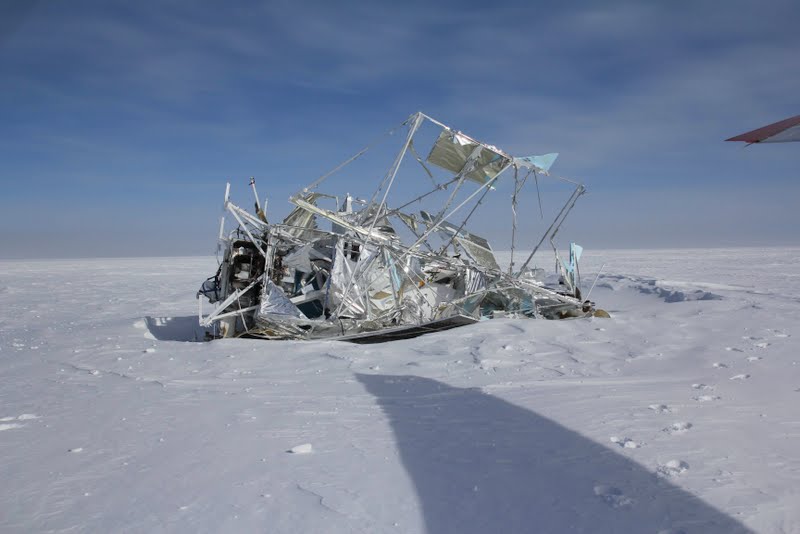

Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 25 d 11 h 39 m Landing site: 351 miles NNW of McMurdo Station, Antarctica
