Purpose of the flight and payload description

A project to develope a balloon system capable of providing scientific measurements for 100-day missions with floating altitude close to 35km transporting payloads of near 1.5 tons.

It is a super-pressure balloon made of a composite fabric (polyester + polyethylene film and fabric) that is filled with Helium and hermetically sealed. Meridional tendons provide additional rigidity to the envelope. The pressure inside the envelop is maintained above the ambient pressure at all times to keep the balloon afloat at a constant altitude. During daytime the internal pressure increases due to solar heating but the volume remains constant due to the rigidity of the envelope. At night the pressure drops due to infrared radiative cooling to space, but as long as the internal pressure remains above the ambient pressure, the balloon stays at the same altitude.

On the future, transported by stratospheric winds around the globe at 30m/s the ULDB would be make a full circunnavegation to Earth in about 2 weeks.

Details of the balloon flight

Balloon launched on: 12/28/2008 at 15:30 local
Launch site: Williams Field, McMurdo Station, Antarctica
Balloon launched by: Columbia Scientific Balloon Facility (CSBF)
Balloon manufacturer/size/composition: Ultra Long Duration Balloon Raven Aerostar - 7.089.000 cuft
Flight identification number: 591NT
End of flight (L for landing time, W for last contact, otherwise termination time): 2/20/2009 at 3:59
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 54 d 1 h 29 m
Landing site: Filchner Ice Sheet, Antarctica
Overall weight: 682 kgs

This flight was of the same kind of which failed to be properly inflated before launch during the Fall campaign at Fort Sumner in 2008. After tracing the failure to a faulty inflation tube the flight was re-programmed to be carried out during the 2008/2009 LDB campaign at Antarctica.

Flight 591NT was the most successful flight of the entire ULDB development program and even broke the previous endurance record of 42 days for a heavy balloon.

The purpose of the 7.000.000 ft3 Super Pressure flight test was to gather data to aid in the assessment of the Super Pressure balloon materials and design, to determine if the design changes made to allow for proper balloon deployment were adequate, and to contribute to the overall design and development of the future ULDB vehicle. The balloon was made of 200 gores measuring 82.6 m in diameter and 51.7 m tall when fully inflated and pressurized. It was designed for a maximum differential pressure of 125 Pa. The flight preparations and launch process was similar to the previous ULDB test flights. The balloon was launched from NASA's LDB facility in Williams Field near McMurdo Station, Antarctica on December 28, 2008 at 2:30 UTC.

As the ascent rates were very similar to what was predicted and were within the established limits, there was no need to valving or ballast drops on ascent. As the balloon neared the float altitude, it began to pressurize showing through the onboard video system a number of undeployed areas which reduced in both number and size as the balloon got higher.

The ULDB fully deployed at 5:07 UTC, at an altitude of 33.69 km and reached float altitude of 33.87 km at 5:12 UTC that is 2 hours and 42 minutes after launched. The balloon performed flawlessly for the next 54 days, completing three circumnavigations to the entire continent.

All flight objectives were met except for balloon recovery which was not really expected since the flight was termination late in the season, when all the resources at McMurdo are focused in retrograde operations.

When decision was taken to terminate the flight, all the ballast remaining was incrementally dropped to force the system to pressurize up to the maximum extent possible. There were no issues with this, reaching the maximum design level of 125 Pa for an extended period at the end of the flight. The flight adhered strictly to the established flight rules which call for a termination over the continent. As the balloon approached the coast, the flight was terminated by command and the payload landed on Berkner Island. The payload appeared to be in good shape and continued to transmit for over 2 weeks after landing.

External references

Images of the mission

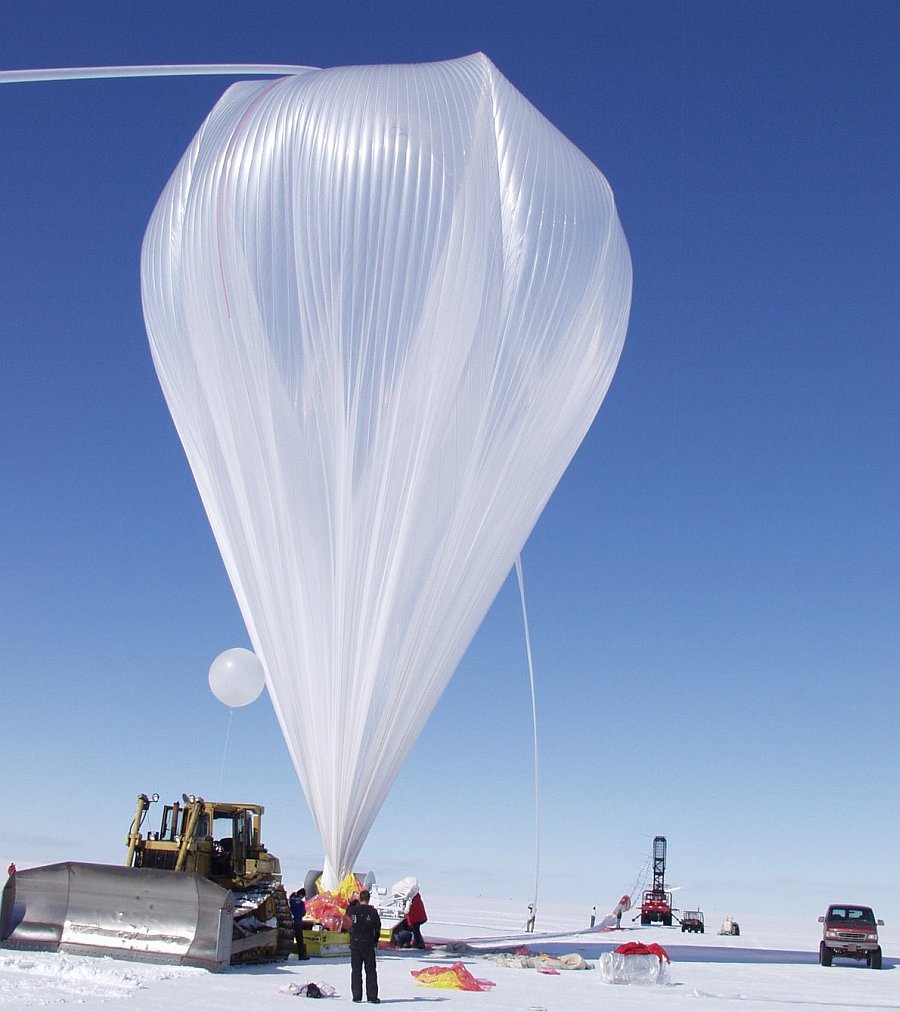

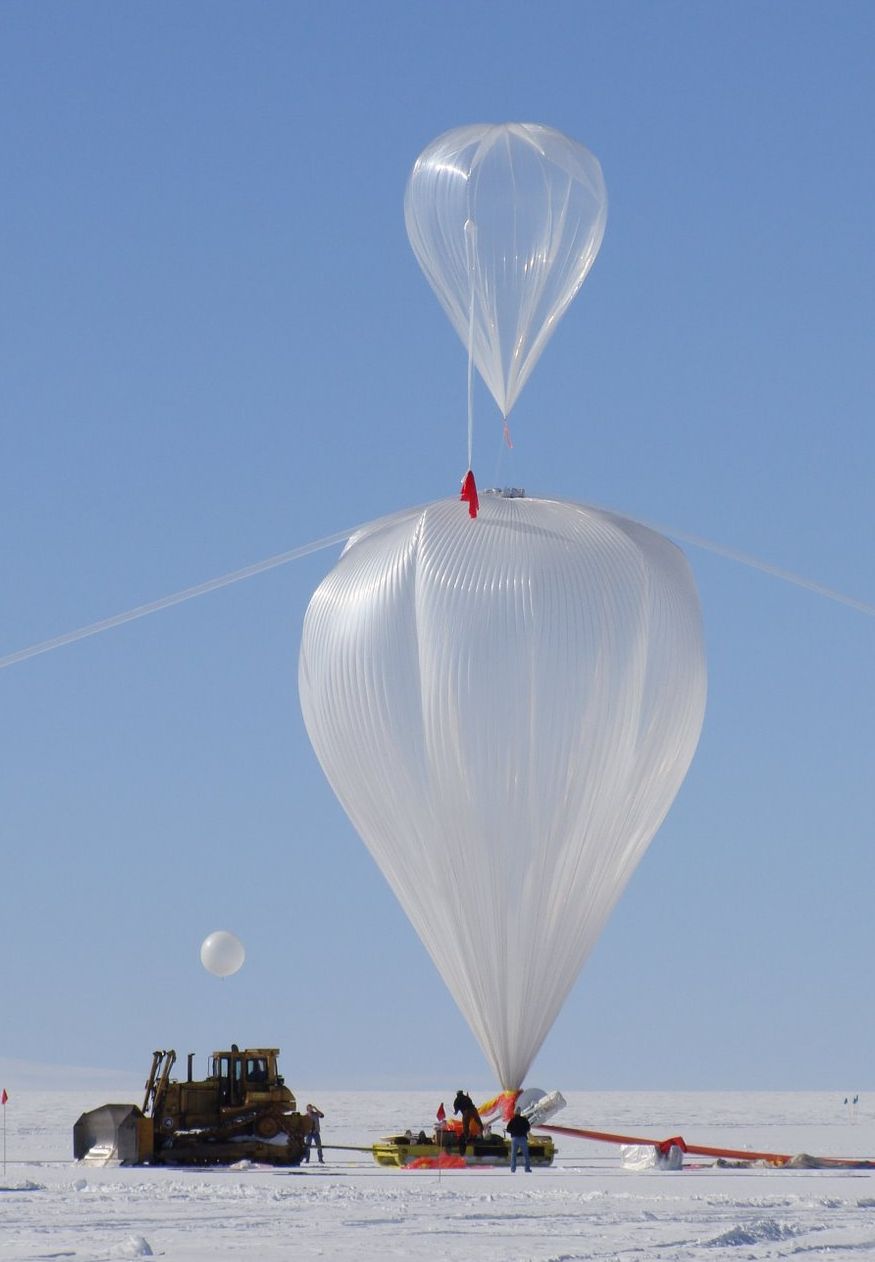

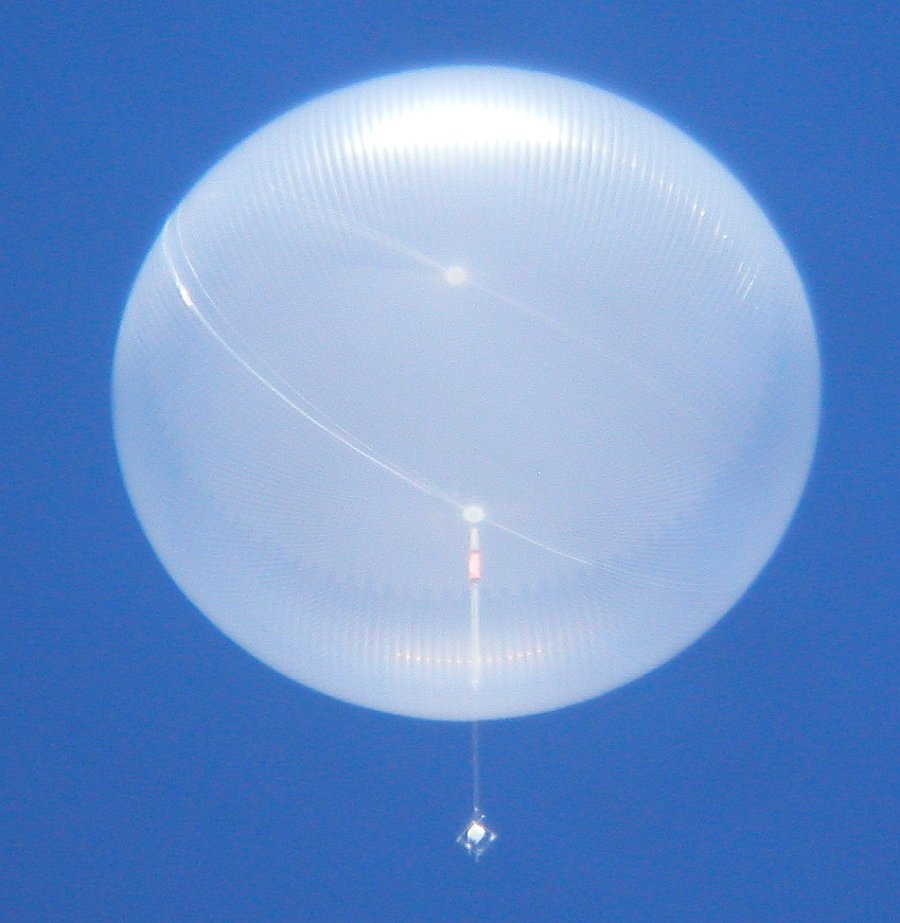

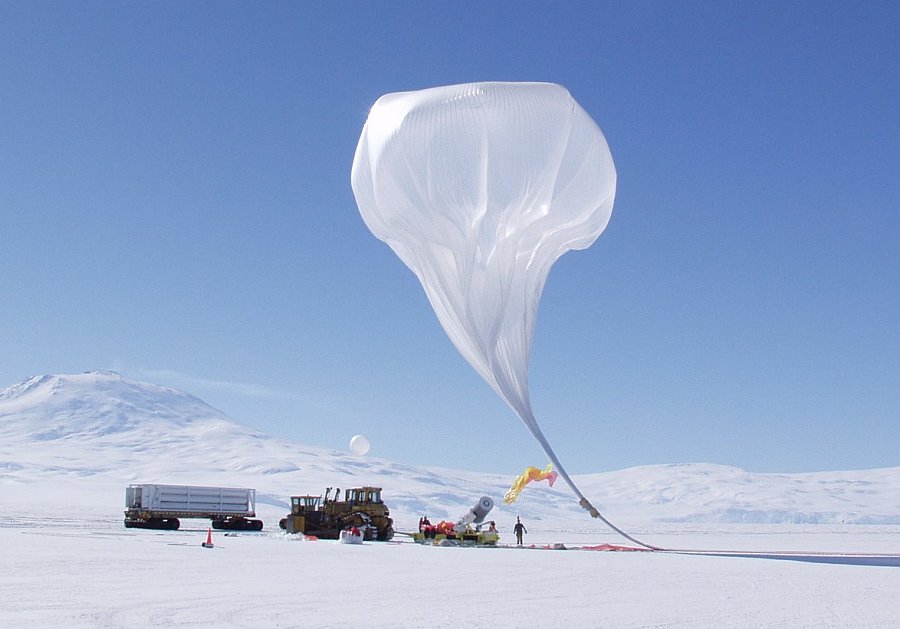

Main balloon inflation (Picture: Mike Smith) Main balloon inflation (Picture: Mike Smith) Balloon released (Picture: Mike Smith) The balloon picked up the payload and is ascending slowly to the stratosphere (Picture: Mike Smith) Impressive image of the ULDB balloon fully deployed at a float altitude of 111.000 ft. This flight set a new endurance record of 54 days aloft (Picture: Mike Smith)
