Purpose of the flight and payload description

The Driftsonde observing system was developed by NCAR to produce vertical profiles of in-situ measurements, at a low cost above oceans, remote Artic, Antarctic, or continental regions where in-situ measurements from radiosondes are not possible from the ground or from aircraft, and regions covered with extensive cloud shields so that satellite measurements are limited.

At left we can see an scheme of the flight system (click for more details). The Driftsonde gondola houses the system electronics which includes an embedded computer, a GPS navigation system, flight level Pressure Temperature Humidity (PTH) sensors, a battery power system, an Iridium satellite two-way connmunication system, a 400 MHz receiver for dropsonde telemetry, and up to approximately 50 dropsonde tubes for the Miniature In-situ Sounding Technology (MIST) dropsonde.

The MIST dropsondes can be dropped down under parachute from the altitude of the carrier balloon to the ground, reaching a landing speed of about 7 m/s. During the descent through the atmosphere, the radiosonde makes measurements once per second, including GPS position, temperature, pressure and humidity. The radiosonde measurements are transmitted to the Driftsonde gondola by a Radio Frequence link in the 400 MHZ band, and then relayed to the operation control center via the Iridium satellite communications system. The radiosondes can be automatically released at predetermined times by the onboard computer or on command through the Iridium satellite link between the Driftsonde gondola using a WEB based system.

These elements were transported onboard a long-duration super pressure balloon developed by Zodiac with a diameter of 12 meters.

Details of the balloon flight

Balloon launched on: 9/4/2006 at 17:50 utc
Launch site: Zinder Airport, Niger
Balloon launched by: Centre National d'Etudes Spatiales (CNES)
Balloon manufacturer/size/composition: Super Pressure Balloon 12 meters diameter
End of flight (L for landing time, W for last contact, otherwise termination time): 9/11/2006 at 17:00 utc
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 7 d
Campaign: African Monsoon Multidisciplinary Analysis (AMMA)

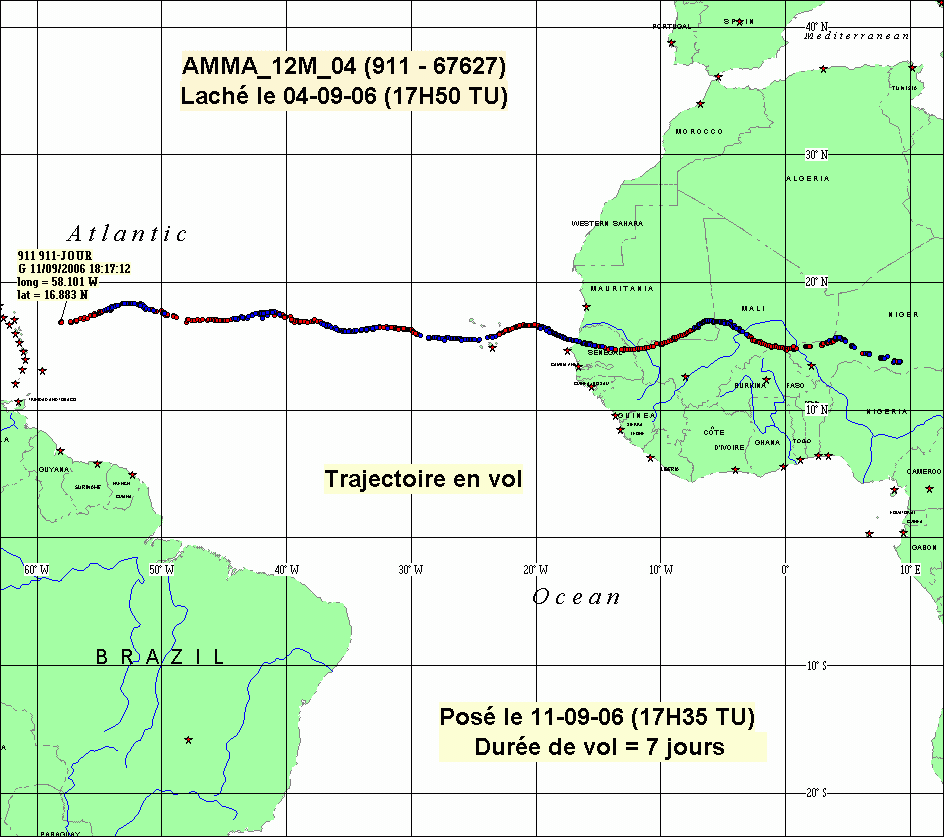

This flight was part of the African Monsoon Multidisciplinary Analysis (AMMA) international project. This was the first time that scientists have used balloon-driftsondes in weather research and prediction. After being launched from Zinder in Niger, each balloon drifted from Africa toward the Caribbean islands at 20kms. Twice per day, each gondola released a dropsonde. In addition to tracking potential hurricanes, the balloon-driftsondes gathered bird's-eye data on surges of hot, dry air that cascade into the Atlantic from the Sahel region of Africa.
