Purpose of the flight and payload description

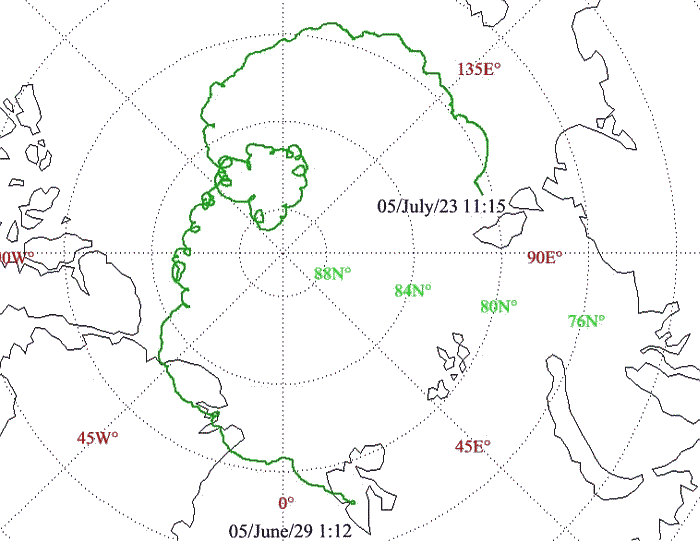

The balloon took part of a campaign designed to prove concept for launching larger Long Duration Balloons (LDB) in the future from Svalbard Islands. As the balloons reached float altitude and circumnavigated the polar region between 78 and 80 deg. N. throught the GPS/ARGOS payload was obtained a trajectory showing the stratospheric circulation pattern of stratospheric winds, diurnal excursions, and potential termination/impact locations for the future LDB flights.

The balloon carried also an Italian built payload called PEGASO (Polar Explorer for Geomagnetism And other Scientific Observations) in the framework of the PNRA program (Antarctic Italian Program) around the northern polar region.

The payload, constructed by National Institute for Geophysics and Volcanology (INGV), was designed for geomagnetism, but supports additional scientific packages, supplying power and collecting data. The built-in scientific instrument is a 3-axis ring-core fluxgate geophysical magnetometer, kept far from the rest of the payload by an aluminum boom. PEGASO includes a GPS system for data localization and uses an Iridium bi-directional Telemetry for data download and flight remote control (ballast release and termination) through a ground station.

The stratospheric balloon carries a secondary tracking system (GPS/Argos transmitter) used to track the balloon payload system along with the Iridium communication package. The float altitude of the balloon is useful for the study of the radial variation of the geomagnetic field. The definition of the magnetic anomalies in the surveyed region will be highly improved, due to the long distances traveled during the flight.

Details of the balloon flight

Balloon launched on: 6/29/2005 at 3:12 local
Launch site: Longyearbyen Airport, Svalbard, Norway
Balloon launched by: ISTAR (International Science Technology And Research)
Balloon manufacturer/size/composition: Zero Pressure Balloon Raven 10.000 m3
Flight identification number: SVAL-08
End of flight (L for landing time, W for last contact, otherwise termination time): 7/25/2005 at 10:45
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 25 d
Landing site: Over international water (pack-ice) at 11:15 utc at 80º 46,743' N - 107º 18.276' E
Campaign: Arctic LDB Program Development 2005 designed to prove concept for launching larger Long Duration Balloons (LDB) in the future from Svalbard Islands

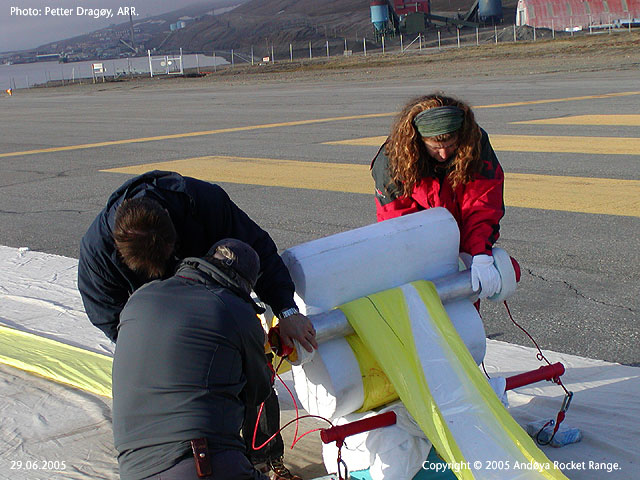

The launch operation started June 28th but was delayed due to increasing winds.

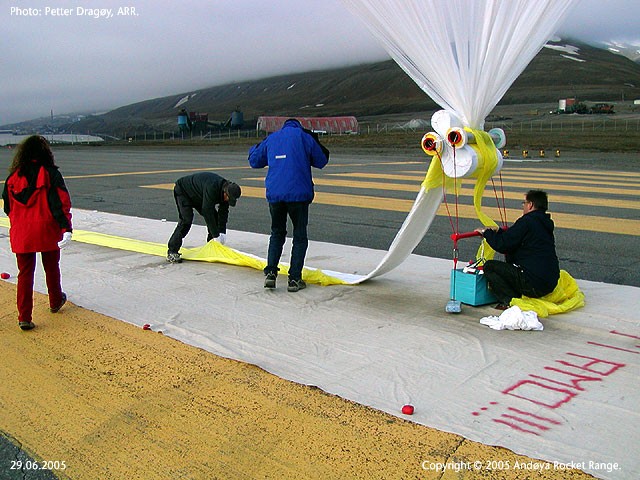

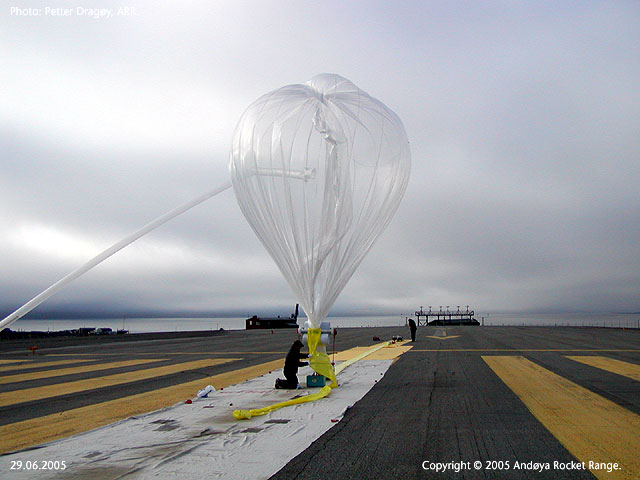

At 24:00 on June 29th the winds was almost gone (2 knots) and the decission to launch was taken. The balloon launch was sucessfully conducted at 3:12 local time. The inflation was nominal as was the launch and climbout of the balloon.

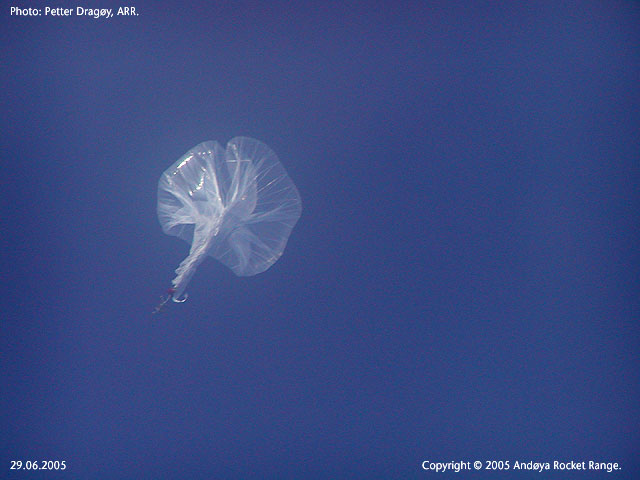

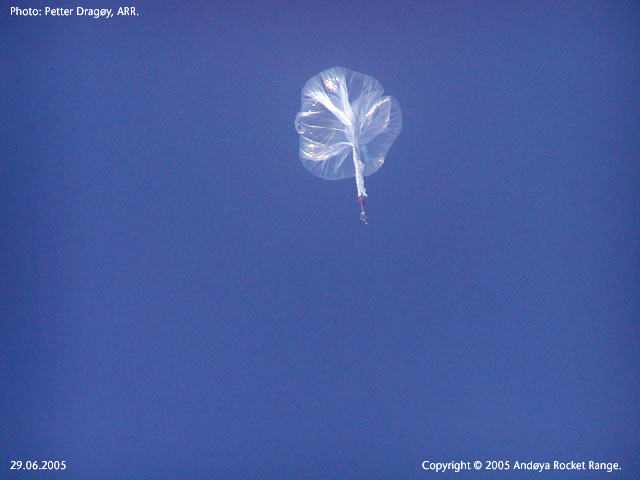

Float altitude near 37000 mts was achieved and all systems worked well.

Finally after 25 days aloft the flight was sucessfully terminated in July 25th 10:45 utc at 80º 31,2'N - 105º 48,7' E while flying at 33675 mts.

The balloon impacted over international water (pack-ice) at 11:15 utc at 80º 46,743'N - 107º 18.276' E

External references

Images of the mission
