Description of the payload

A highly sophisticated gondola specializing in air mass zero (AM0) calibration of solar cells.

Calibrations are performed fliying the gondola on-board stratospheric balloons at high altitudes (>36 km) where the solar spectral irradiance is very close to AM0. The cells calibrated in this way can subsequently be used as standard solar cell in various laboratory tasks for solar cell characterization by sun simulators.

CNES is the only laboratory in Europe carrying out calibration of this type above the atmosphere.

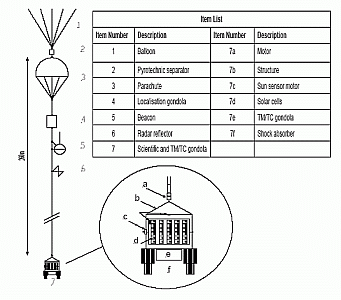

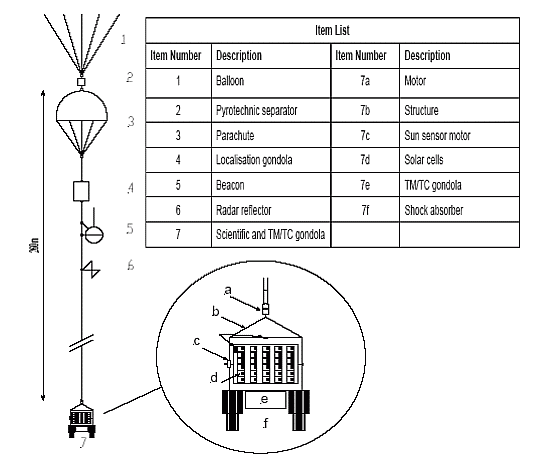

At left is a drawing of the balloon/payload system (click to enlarge).

The CNES calibration flights have flown from Aire sur l'Adour or Gap (in France) facilities since 1975 and recently (2005) also were flown in the ecuatorial region (Northern Brazil). The flights are scheduled between June and September, since the Sun is high in the sky at this time of year so that the sunlight passes through a minimal thickness of the atmosphere before reaching the solar modules.

Details of the balloon flight

Balloon launched on: 9/18/2003 at 9:12 local
Launch site: Centre de Lancement de Ballons CLBA, Aire Sur L'Adour, Landes, France
Balloon launched by: Centre National d'Etudes Spatiales (CNES)
Balloon manufacturer/size/composition: Zero Pressure Balloon
End of flight (L for landing time, W for last contact, otherwise termination time): 9/18/2003 at 14:15 local
Balloon flight duration (d:days / h:hours / m:minutes): 5 h
Landing site: Near Gimont, Midi-Pyrénées, France
Campaign: ENVISAT VALIDATION

Launch was on September 18 at 9:12 local time, by dinamic launch method assisted by auxiliary balloons.

The chronology of flight is as follows:

9:42 Starting of the anti-solar pointing system
11:00 Float altitude achieved (34.750 m) and starting of cell exposition
13:00 Stop of the payload operation
13:24 Payload cut down
14:15 Landing of the payload near the town of Gimont, Midi-Pyrenes

The payload returned to the launch base in good condition the same day.

Click in the map at left to see the flight path of the balloon (thanks to Marcelo Salvia).

External references

Images of the mission

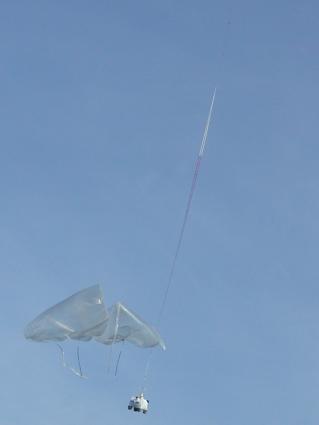

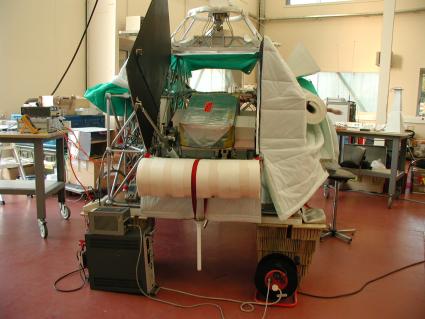

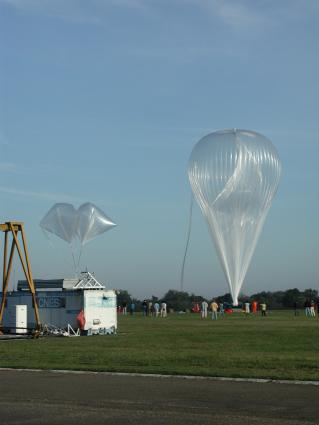

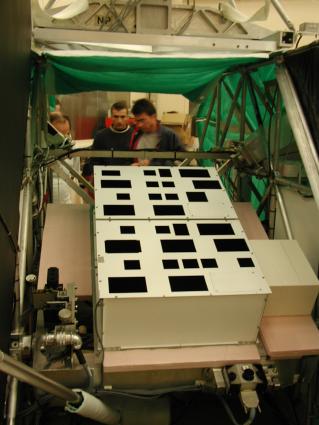

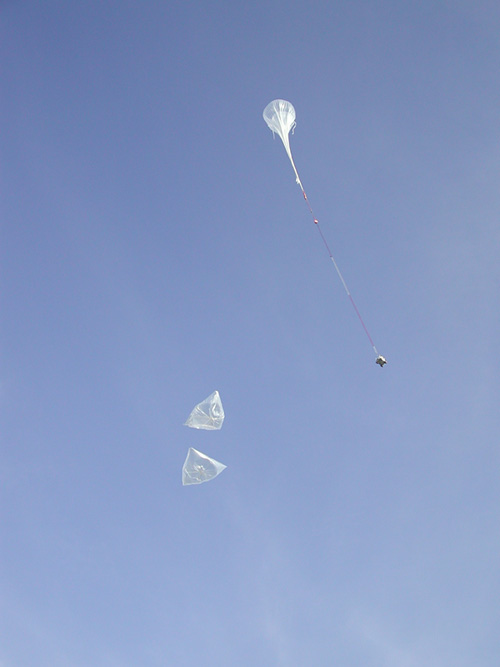

general view of the gondola Another view of the gondola. In the black squares are mounted the solar cells to be tested Main balloon inflation After launching of the main balloon the gondola is draged in the air by the auxiliary balloon Once fully airborne, a devices detaches the auxiliary balloon and the ascent starts
