Description of the payload
MANTRA is a balloon mission to investigate changes in the concentrations of ozone and other compounds in the stratosphere.

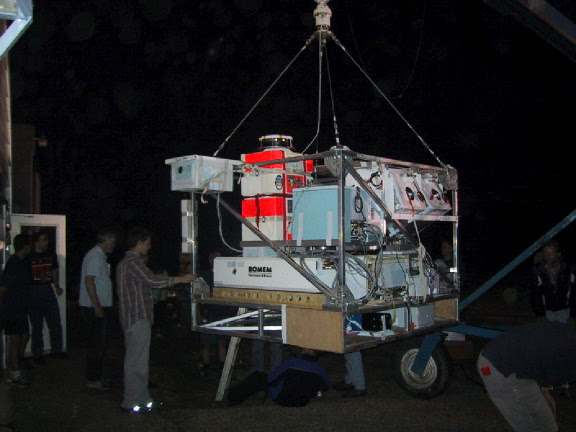

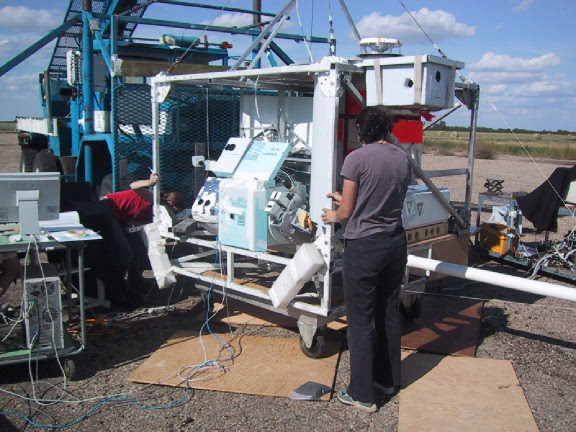

This third MANTRA flight payload consisted of:
- MSC emission radiometer
- MSC SunPhotoSpectrometer
- one FTS (U of Denver)
- Service d'Aéronomie SAOZ
- MSC ozonesonde
- aerosol sonde
- second MSC emission radiometer
- MAESTRO clone
- second FTS (MSC)
- MSC OH spectrometer
- MSC Brewer spectrophotometer
- U of Toronto grating spectrometer
- CRESTech/York U AOTF spectrometer
Details of the balloon flight and scientific outcome
Launch site: Scientific Instrumentation Ltd Balloon Launch Facility, Vanscoy, Saskatchewan, Canada
Balloon launched by: Scientific Instrument Limited
Balloon manufacturer/size/composition: Zero Pressure Balloon 330.000 m3

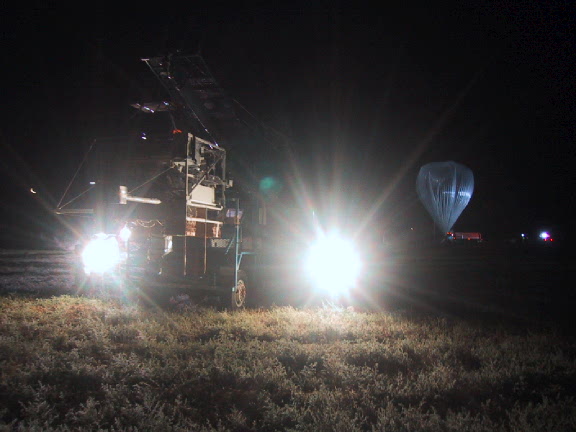

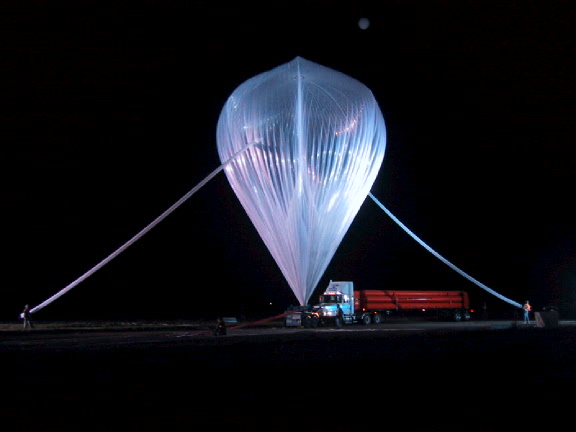

The launch took place by dynamic method assisted by launch vehicle at 2:02 a.m. CDT on September 3th. after some cancellations the previous days due to bad weather.
After a nominal ascent phase, float altitude was reached and in the first part of the flight the ground team had some telemetry dropouts for the first few km, fixed by moving ground antenna.
At 10:30 began opening the balloon valve to release helium in order to descend by 1-2 km, hoping to reach an altitude of lower winds based on sonde data.
Continued to release helium in the afternoon, but winds at lower altitudes were higher than expected (up to 42 mph), and mostly heading east
Float altitude varied from ~38 km in the morning to ~34 km after valving down.
At 17:00 the spotter plane went out in pursuit of the gondola. Meanwhile winds veered southwards and slowed, making it possible following the flight for more measurements until 20:00 when the gondola was cut-down.

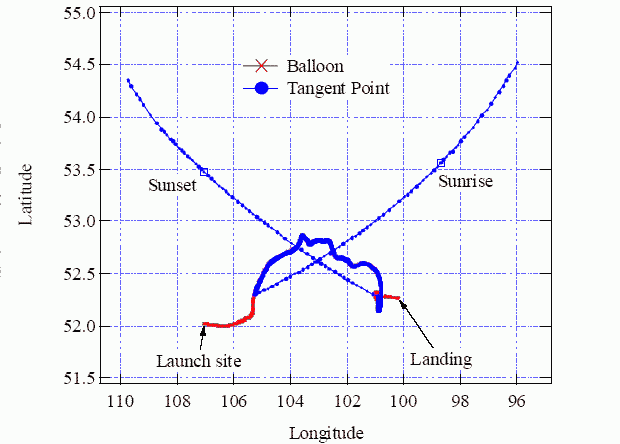

Landing was at 52.276°N latitude, 100.208°W longitude, near Duck Bay in Lake Winnipegosis, Manitoba province.
