Description of the payload

The payload contained Low and High voltage electric field probes, magnetic search coils for a vector B-field measurement, x-ray detectors, one pointing up and one pointing down and two optical lightning detectors, one pointing up and one pointing down.

The main objective of the experiment was to measure electric and magnetic fields, along with x-rays and optical lightning associated with sprites. Sprites are large, brief flashes of light that occur very high in the atmosphere above large thunderstorms.

Details of the balloon flight and scientific outcome

The balloon path is marked with the green line.

Launch site: Balloon Launch Sector, Cachoeira Paulista, Brazil
Balloon launched by: Instituto Nacional de Pesquisas Espaciais (INPE)
Balloon manufacturer/size/composition: Zero Pressure Balloon
Campaign: SPRITE 2002

The balloon was launched at 20:00 local time, on december 6th 2002.

At about 21:30 the balloon reached its float altitude of about 34km and was heading towards a large thundercloud. For about 1 hour it was flying directly over this thunderstorm.

The flight was terminated near 11AM local time when was activated the onboard timer and the payload was cutdown.

During this flight the balloon was directly over a thunderstorm thus making excellent measurements of electromagnetic fields.

External references and bibliographical sources

Images of the mission

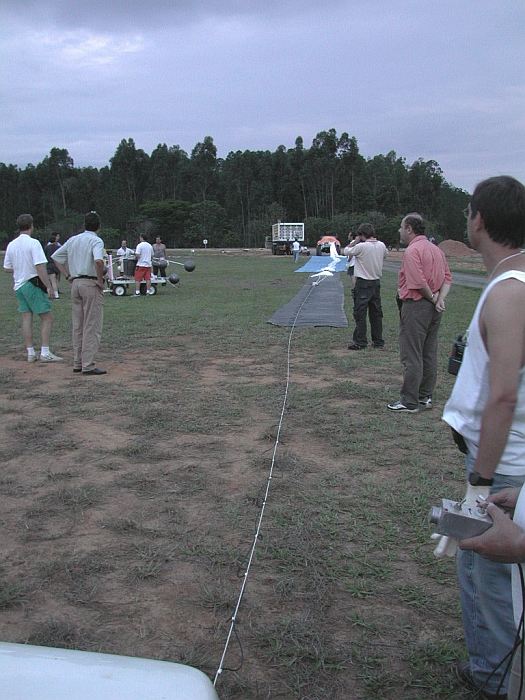

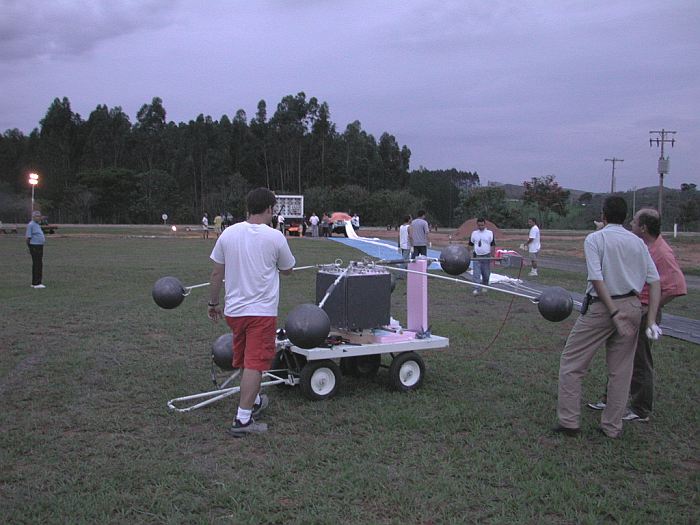

SPRITES launch preparations Another view of the flight line A closer view of the weird instrument
