Purpose of the flight and payload description

The µSDLA (Micro Spectrometric Diode Laser) developed by the Service d'Aéronomie of the Centre National de Recherche Scientifique from France, was a diode laser spectrometer devoted to the in-situ measurement of H2O and CH4 in the UTLS (upper troposphere low stratosphere) by infrared absorption spectroscopy. The instrument was a smaller, lighter and easier to launch version of the SDLA-LAMA instrument also developed by the same group.

It was composed by three near-infrared telecommunication-type InGaAs laser diodes which were connected by means of optical fibers to an open multipath optical cell providing an absorption path-length of 28 m. The laser beam was absorbed by ambient gas molecules as it was bouncing back and forth between the cell mirrors. CH4 was monitored at 1.65 µm and H2O at 1.39 µm using the differential detection technique. The payload also included pressure and temperature sensors. To avoid contamination by out-gassing from the balloon or the payload, only data recorded during the slow night-time descent of the balloons were considered, continued by those during parachute descent in the lower troposphere.

Details of the balloon flight

Balloon launched on: 5/24/2002 at 8:54 utc
Launch site: Centre de Lancement de Ballons CLBA, Aire Sur L'Adour, Landes, France
Balloon launched by: Centre National d'Etudes Spatiales (CNES)
Balloon manufacturer/size/composition: Zero Pressure Balloon model 35SF Zodiac - 35.000 m3
Balloon serial number: 35SF Nº 107
End of flight (L for landing time, W for last contact, otherwise termination time): 5/24/2002 at ~ 13:00 utc
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 4 h 3 m
Payload weight: 331 kgs
Gondola weight: 68 kgs

This was the second technological flight of the instrument after an initial failed attempt on May 15. It was carried out from the CNES balloon launch base of Aire Sur L'Adour on May 24, 2002. The mission was launched using the auxiliary balloon method at 8:54 utc. The balloon achieved a float altitude of 11 mb. Total flight time was 4 h and 3 minutes. An helicopter was dispatched by CNES to the landing site. Upon arrival there they found that the landing was harder than expected. As a result the instrument's internal optical parts were seriously damaged. The test flight served to introduce several modifications in the aluminum mechanical structure of the gondola. From the point of view of in-flight measurements, however, it was a success.

External references

Images of the mission

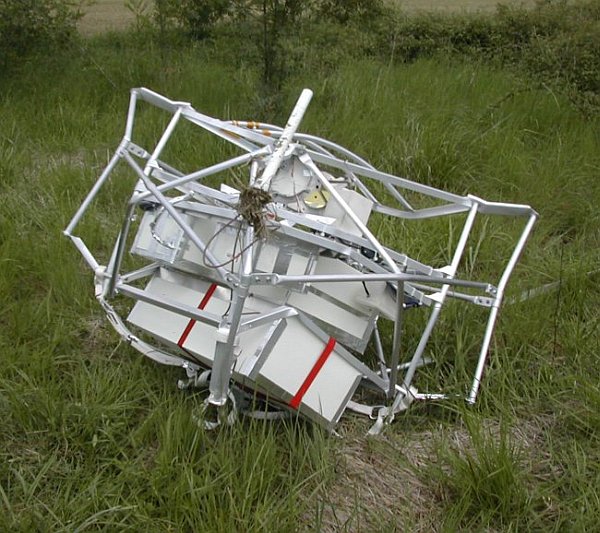

The SDLA team posing before the flight along her main balloon inflation The instrument after a rough landing
