Purpose of the flight and payload description

BACH stands for Balloon Air Cherenkov Experiment whose aim is to register very high-energy iron particles from cosmic rays using the Cerenkov light flashes, which these particles trigger in the uppermost layer of the earth's atmosphere. It was an instrument developed at the Department of Physics and Astronomy, University of Delaware with the collaboration of the Christian-Albrechts-Universität Kiel from Germany.

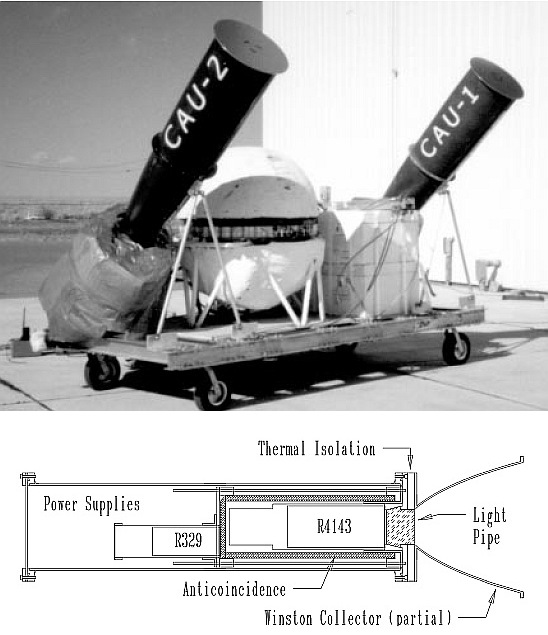

At left we can see the BACH instrument. The working principle is based in the premise that as a cosmic ray approaches the Earth, the atmosphere thickens and eventually the speed of the particle exceeds the speed of light in the ambient atmosphere, and the particle begins to generate Cherenkov radiation. As the particle penetrates into denser air, the Cherenkov angle and intensity increase. The first photons are emitted just on the axis defined by the particle path, but subsequent photons lie further and further from the axis when they reach any given depth in the atmosphere forming a circular spot or "pool" of light.

BACH was designed to improve the resolving time achieved by similar experiments in the past, thus to be able to use smaller, lighter optical components and therefore obtain a higher total geometry factor by mounting several detectors on the same payload. For this purpose BACH counted with high quality Hamamatsu R4143 three inch photomultipliers with a rise time of 1.8 nanoseconds, and electronics with commensurate capabilities. The cerenkov light was collected by using the so called Winston collectors, which were cup-shaped reflectors 209 cm long with a radius aperture of 24.3 cm. Each collector consisted of two upper and two lower sections, molded individually from carbon fiber epoxy composite material. A reflective aluminum coating was evaporated onto the sections, which were then assembled. They were uniformly sensitive to light within a viewing cone of 7.5º half-angle. Two collectors, separated on axis by 2.87 m, were operated in coincidence to reduce backgrounds due to numerous lower Z nuclei encountering the payload with small impact parameter.

As photomultipliers attached to the collectors must operate in very stringent conditions the development team constructed the so called Pressurized Optical Detectors (PODs) to operate the photomultipliers at one atmosphere, and couple them to the collectors via light pipes of Bicron UV transparent acrylic. The light pipes extend out from the PODs to allow thermal isolation of the PODs and collectors, while providing electrical insulation as well. Surfaces of each light pipe were polished and kept from contacting the POD structure except for a 0.32 cm tapered flange that provided a pressure seal. The PODs also contained R329 photomultipliers coupled to plastic scintillators that covered the detector photomultipliers and internal sections of the light pipes to serve as an anticoincidence shield against cosmic rays. Each photomultiplier received high voltage from an individual power supply, adjustable in flight.

Data was acquired with a Tektronics TDS640A digital oscilloscope which flew as part of the payload and captured 2 gigasamples per second in four channels simultaneously. The four channels were used to record data from the two R4143 photomultipliers and the two anticoincidence detectors. The oscilloscope along with a microcontroller-based unit used to interface it to the command and telemetry system, as well triggering electronics and other systems were housed in a egg-shaped pressurized vessel located between the two collectors. A flat platform served as gondola were the light collectors and pressurized vessel were mounted. At the bottom of the platform were located crush pads to soften the impact of the landing and a ballast hopper to control the flight altitude of the balloon.

Details of the balloon flight

Balloon launched on: 9/25/2000 at 13:53 utc
Launch site: Scientific Flight Balloon Facility, Fort Sumner, (NM), US
Balloon launched by: National Scientific Balloon Facility (NSBF)
Balloon manufacturer/size/composition: Zero Pressure Balloon 800.000 m3 - SF3-424.37-080-NSCR-02-ST
Balloon serial number: W29.47-2-18
Flight identification number: 490N
End of flight (L for landing time, W for last contact, otherwise termination time): 9/26/2000 at 14:37 utc
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): ~ 25 h
Landing site: 8 miles N of Snowflake, Arizona, US

The balloon was launched from Ft. Sumner, base in New Mexico, on the morning of September 25, 2000. At the moment of the release from the launch vehicle, the instrument was dragged across the tarmac and as a result, the ballast hopper damaged. In the third image at right, we can see the ballast pouring from the payload while ascending. Althought it was tought that this would force to abort the flight, after making some adjustments via telemetry, a total flight time of 12 hours was obtained.

External references

Images of the mission

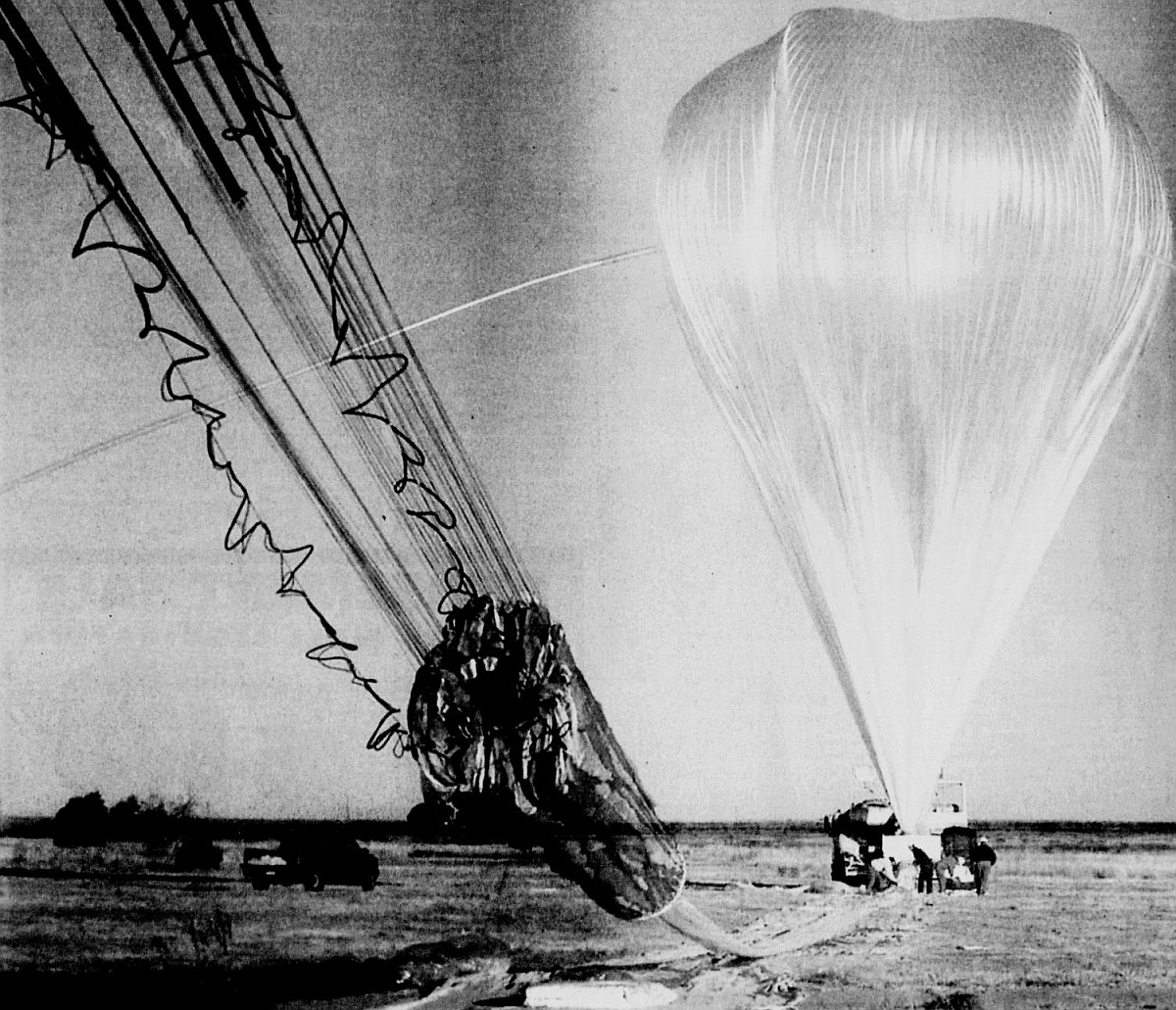

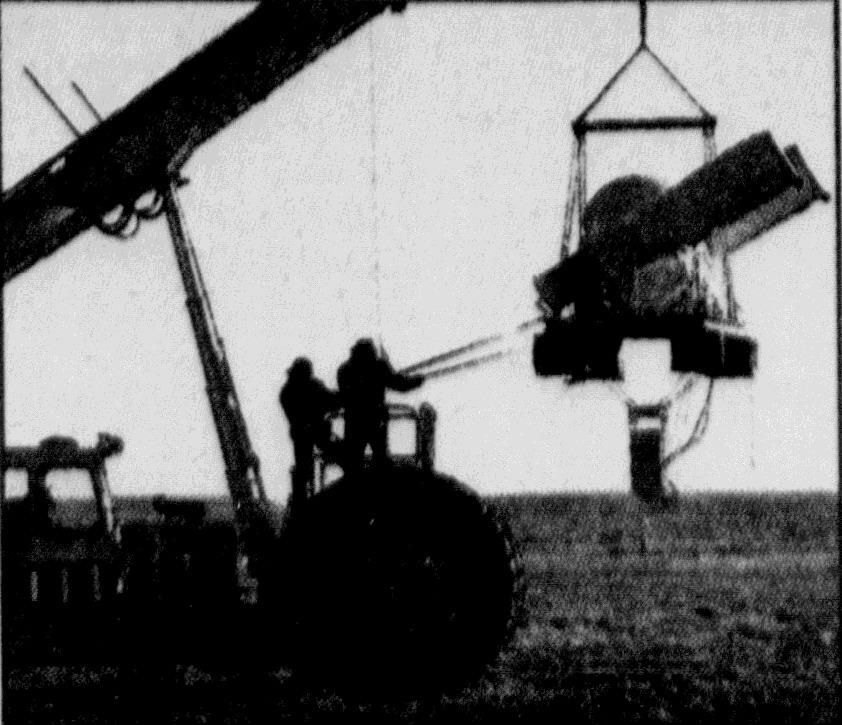

Balloon inflation (Image: Gwyn Matthews for the Clovis News Journal) NSBF technicians ready to release the payload (Image: Gwyn Matthews for the Clovis News Journal) The damaged ballast hopper pouring its content after being dragged acroos the floor at launch (Image: Gwyn Matthews for the Clovis News Journal) View of the balloon from the Very Large Array antennae complex located near Socorro, New Mexico (Image C. Gino)
