SKERRIES was a project developed to collect climatology information on the seasonal and year-to-year variability of stratospheric CFCs, water vapour and atmospheric electrical parameters by regular balloon flights from Esrange. It was a collaboration between the Swedish Institute of Physics, the Meteorological Institute at Stockholm University and the University of Cambridge.
Each flight transported several instruments onboard:
DESCARTES a lightweight instrument for the measurement of long-lived trace gases. The instrument was originally developed at the University of Cambridge. It was designed to fly piggyback on other payloads, with a low weight of about 16 kg and no need for telemetry. The instrument collected samples by letting a measured volume of air pass through a tube containing a Carboxen adsorbent. The measured species include CFC-11, CFC-113, CCl4 and CH3CCl3.

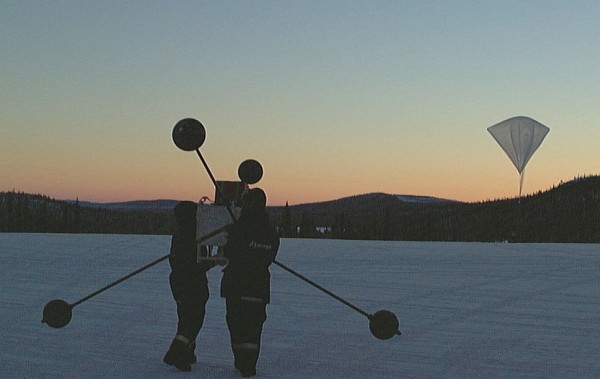

ERISKAY and EDAY two instruments aimed to measure atmospheric and magnetospheric electric fields. The first one was a 4-probe instrument to measure all 3 vector components of the electric field, incorporating also a 3-axis magnetometer. It was designed to measure the atmospheric (vertical) electric field during ascent and descent and the magnetospheric (horizontal) electric field at float. The Second one was a simpler version which measured only the atmospheric vertical electric field, at heights above the tropopause.
MARTIN an acoustic balloon-borne instrument to measure temperature fine structure near the tropopause developed by IRF and the Technical University Graz. It made use of the fact that the speed of sound is to a very good approximation proportional to the square root of temperature. The instrument provided a basic time resolution of over 700 Hz and 1 mK in temperature.
An optical HYGROMETER for nighttime use originally built at the Atmospheric Physics group at Stockholm University. It was usually flown on sounding rockets but also participated in SKERRIES balloon flights.
Balloon launched on: 12/15/1999 at 11:00 utc
Launch site: European Space Range, Kiruna, Sweden
Balloon launched by: Swedish Space Corporation (SSC)
Balloon manufacturer/size/composition: Zero Pressure Balloon
Flight identification number: SKERRIES 5
End of flight (L for landing time, W for last contact, otherwise termination time): 12/15/1999
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): ~ 2 h
Payload weight: 47 kgs

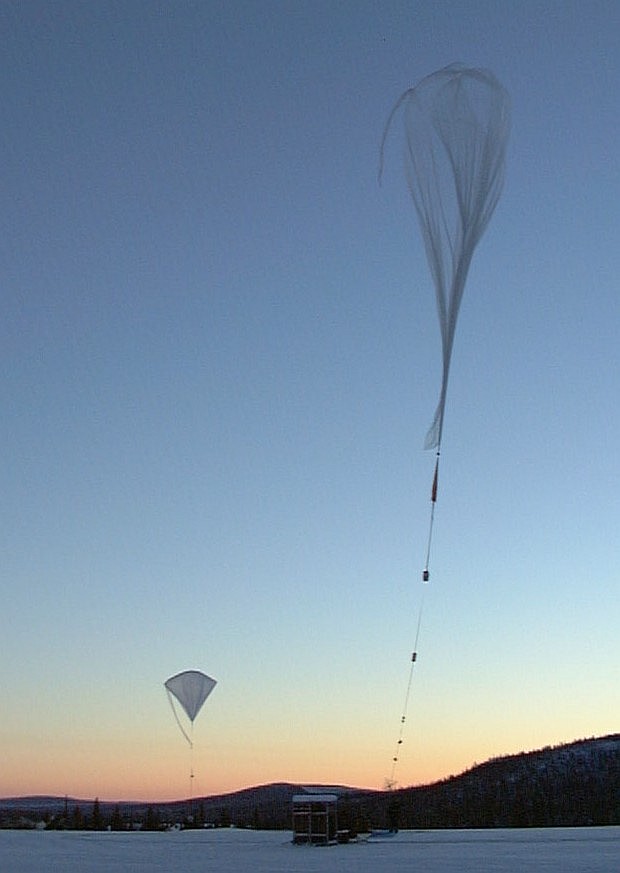

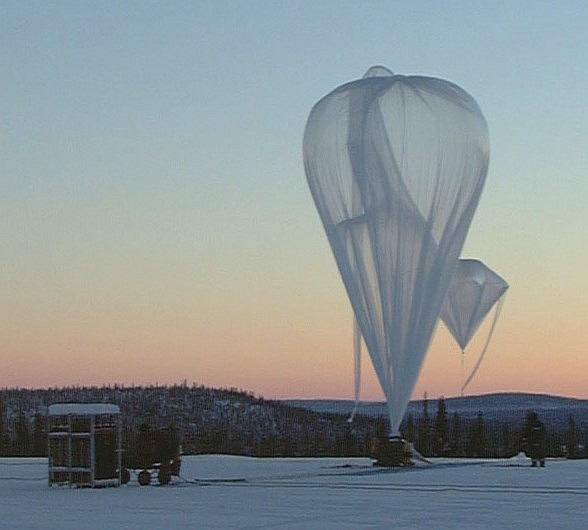

The balloon was launched on December 15th, 1999 from the balloon launch pad of ESRANGE near Kiruna, Sweden at 10:50 UTC.
