Description of the payload

The instrument was composed by a 60 cm far-infrared balloon-borne telescope with attached photometer. A schematic of the complete system is shown at left. The Cassegrain-type telescope with a diffraction limited field of view was previously used in other experiments by the same group for the determination of temperature increases over active regions on the solar disk. For the goal of this mission which was the observation of molecular clouds in the galactic plane, was constructed a completely new instrument because of the higher sensitivity required.

The gondola structure and the telescope stabilization have been designed at the Geneva Observatory. A light-weight telescope frame with a honeycomb instrumental platform and a carbon reinforced plastic telescope tube has been developed at ETH—Zurich in order to reduce the weight of the instrumentation without loss of mechanical stiffness. The fully equipped gondola weighed 470 kg. Its dimensions were 120 cm in length, 170 cm in width and 250 cm in height. Telescope and instruments were protected during ascent and landing with doors and the whole gondola was wrapped in a insulating plastic skin. Coarse pointing with an accuracy of 2 arc min in azimuth was achieved by a magnetometer-controlled pivot, mounted between the gondola and the balloon. An inclinometer provided the coarse position in elevation. Once coarse pointing was accomplished, the star used as guide appeared in the 3° field viewed by a TV camera. The centering on the TV screen bringed the guidance star into the field of view of a star-tracker telescope and finally into its focus under automatic tracking control by a four quadrant fiber-optic and image disector. Reaction wheels whose rotating axes are parallel to the two telescope axes in combination with three gyros prevent the swinging of the gondola during the servo-controlled positioning of the telescope.

The far-infrared section of the gondola consisted of a Cassegrain-type telescope with an attached photometer. The telescope hads f/12 optics. The diameter of the primary mirror was 60 cm, that of the secondary mirror was 8.93 cm. The primary and secondary mirrors were fabricated of gold-coated solid Zerodur.

Beside the telescope, the optical system comprised helium-cooled bandpass filters and a cooled detector. Three mesh interference bandpass filters at a waveleghts of 80, 125 and 330 micrometers, were used alternatively. As detector was selected a composite silicon bolometer cooled to about 2 degrees Kelvin coupled to a cooled preamplifier and a phase sensitive amplifier outside the cryostat. The digitized detector signal together with housekeeping data were transmitted by telemetry to the ground station.

Details of the balloon flight

Balloon launched on: 5/8/1989 at
Launch site: Centre de Lancement de Ballons CLBA, Aire Sur L'Adour, Landes, France
Balloon launched by: Centre National d'Etudes Spatiales (CNES)
Balloon manufacturer/size/composition: Zero Pressure Balloon
End of flight (L for landing time, W for last contact, otherwise termination time): 5/9/1989 at ??
Balloon flight duration (d:days / h:hours / m:minutes): ~ 8 h
Landing site: --- No Data ---

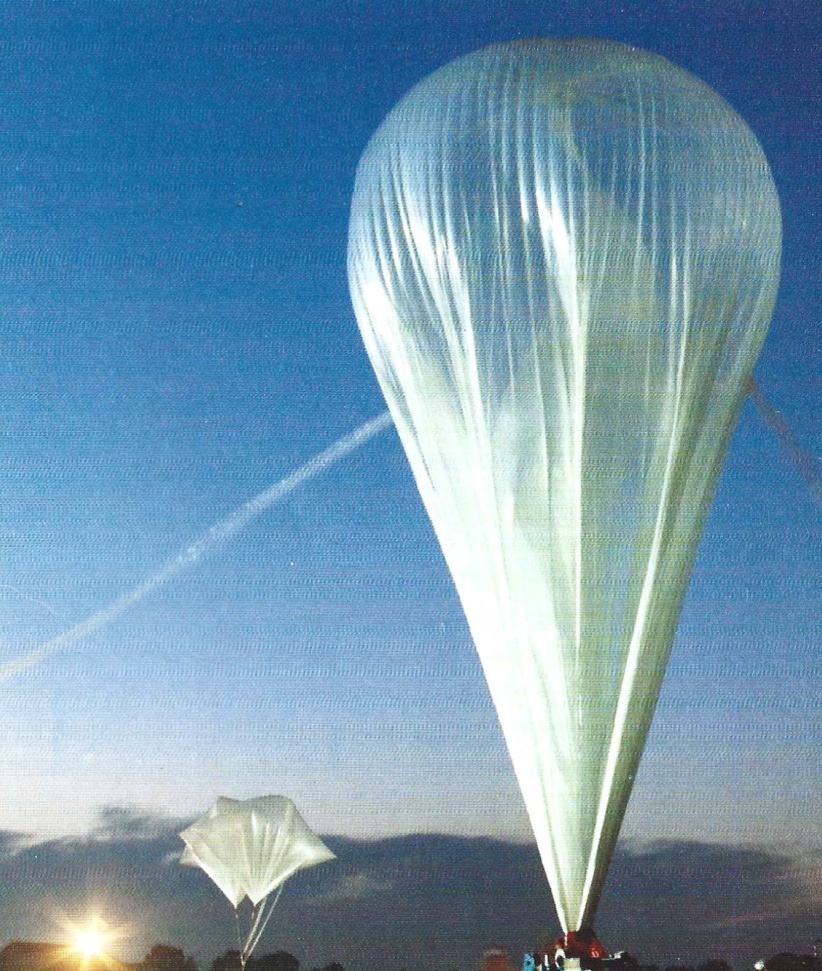

The balloon flight denominated Cygnus I took place at Aire sur l'Adour, France on the the night of May 8-9, 1989. Excellent weather conditions allowed to perform observations for almost 5 hours at float altitude of 39 km. The test procedures for the technical equipment proved to be successful. The pointing error of the telescope was in the order of 5 arcsec rms. The detected infrared signal however was higher than expected due to the high background radiation. Because these observations did not provide satisfactory results, the instrument has to be modified before the next flight which ocurred in September 1990 this time with succesful results.
