DGT was the acronym for Directional Gamma-ray Telescope an instrument developed in early 1980's at the University of New Hampshire to image celestial gamma-rays over the energy range 160 keV to 9.3 MeV. It used for the first time a technique known as coded aperture imaging in order to obtain spatially resolved images of the sky with an angular resolution of 3.8°. Coded aperture imaging is now a standard technique in high energy astronomy. The DGT design was based very heavily on a previous University of New Hampshire balloon experiment known as the Large Gamma-ray Telescope
The DGT instrument is shown schematically at left (click to enlarge). The detection plane consisted of a 35-element array of bismuth germanate (BGO) scintillation crystals actively shielded from below by 10 cm of Nal Polysem and on the sides by 7.5 cm of Nal. The entire anticoincidence well defined a forward geometric aperture of ~120° FWHM. Each BGO element was a right-circular cylinder 5.1 cm in diameter by 2 cm thick. BGO was chosen in preference to Nal for the detection plane because of its higher sensitivity per unit volume. The coded mask of the DGT was positioned 84 cm above the detection plane and had outside dimensions 72.8 cm by 50.4 cm. Each opaque element of the mask was composed of a 5.6 cm by 5.6 cm block of lead, of thickness 1.9 cm. Such a thickness was sufficient to attenuate 97% of the photon flux at 0.5 MeV and 60% at 2.6 MeV. The pattern of mask elements was based on a 5x7 URA pattern.
The main detector components were contained within a 1/16" thick pressurized aluminum housing which was maintained at a minimum 5 psi during the flight to reduce the potential of high voltage corona discharge. Temperature was controlled within this container using foam insulation and internal heaters. Fans were also used to ensure the efficient removal of the internally-generated heat via convective airflow to the outer surface of the pressure vessel. Power for the experiment was provided by a stack of 100 lithium organic batteries having a total capacity of 200 amp/hours.

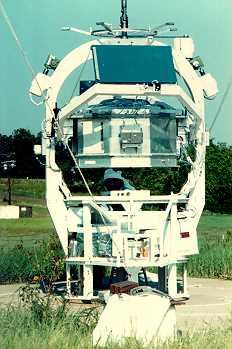

The pressurized container (or detector "can") was mounted onto a 0.75" thick support plate which, in turn, was mounted within the supporting arch on the gondola via a 1 1/2" horizontal shaft. This shaft also served as the rotation axis of the central detectors. This mounting was such that the detector assembly could be moved independently in zenith angle over a range of 0° to 85° on either side of the supporting arch. The detector can was driven by a stepping motor in commandable increments. The mask was mounted, parallel to the detector, on a support arm which could be raised and lowered in elevation. In order to maintain a balanced gondola, a second (counterweight) arm was symmetrically mounted with respect to the mask arm and carried identical weight.
Alignment of the mask with the detector array was achieved by the use of infrared optical sensors. The zenith angles of the detector can and the mask/counterweight arms were determined with the use of calibrated potentiometers to an accuracy of ±0.25°. The zenith reference was the local vertical and any offset of the gondola from level was determined by two precision inclinometers which measured pitch and yaw.
Azimuthal orientation of the experiment was obtained by setting an offset flux gate magnetometer to the desired azimuth and torquing an inertia wheel to null the magnetometer. The magnetometer angle was measured with a calibrated potentiometer to an accuracy of ±0.25°. The inertia wheel drive signal was pulsed at a frequency determined by the offset angle and its rate of change. Due to both the effects of the balloon rotation and thermal effects on the gondola support bearings, the experiment oscillated in azimuth about the magnetometer null point with an RMS amplitude of ~3.0°. A second magnetometer, fixed with respect to the gondola, gave coarse verification of the pointing direction throughout the flight. Two sun sensors of different designs were mounted on the mask arm to periodically check the ponting zenith and azimuth during the daytime portion of the flight.
The total gondola weight, including batteries, crash padding and NSBF electronics (telemetry) was about 1735 pounds (790 kg).
Balloon launched on: 10/1/1984 at 14:25 utc
Launch site: Columbia Scientific Balloon Facility, Palestine, Texas, US
Balloon launched by: National Scientific Balloon Facility (NSBF)
Balloon manufacturer/size/composition: Zero Pressure Balloon SF-384.52-060-NSCR-01
Balloon serial number: W21.62-2-01
Flight identification number: 1379P
End of flight (L for landing time, W for last contact, otherwise termination time): 10/2/1984 at 22:35 utc
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 32 h
Landing site: 4 miles N of Mabank, Texas, US
Overall weight: 1600 kgs

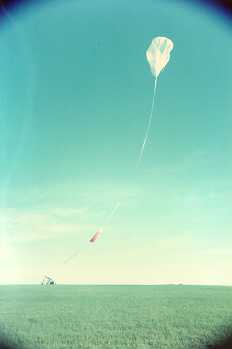

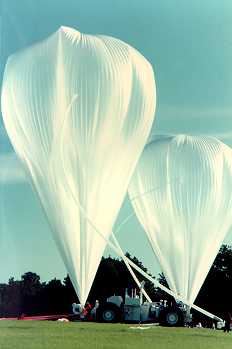

The DGT was launched as flight 1379-P from the National Scientific Balloon Facility in Palestine, Texas at 14:25 UTC on October 1st. 1984. The balloon successfully crossed the tropopause (where it failed in the two previous flights) and reached 3 mb of float altitude at approximately 17:00 UTC remaining there for roughly 30 hours. The altitude of the payload generally varied between 2.5 and 3.5 gm/cm2 with the balloon remaining well within the ~300 mile telemetry limit of the Palestine base throughout the entire flight. Termination of the flight took place at 22:35 UTC on October 2. The package was recovered some 65 miles northwest of Palestine, TX.
The experiment performed well throughout most of the flight. Imaging observations of a number of sky regions were made; these observations were centered on the Crab Nebula/pulsar, Cygnus X-l/X-3, NGC 4151, 2CG 135+1, SS 433, and 3C 273. All measurements were performed using a drift scan technique in which the source was allowed to drift through several image elements within the field of view. The pointing information from the experiment was verified periodically during the flight using a two-axis solar sensor.
