Purpose of the flight and payload description

EOSCOR was the acronym of Extended Observation of Solar Cosmic Radiation, a balloon-borne detector for measuring solar flare neutrons in the energy range 20 to 150 MeV. The instrument was designed at the Case Western Reserve University during late 1970's decade to take advantage of several long durations balloon flight systems under development at the time.

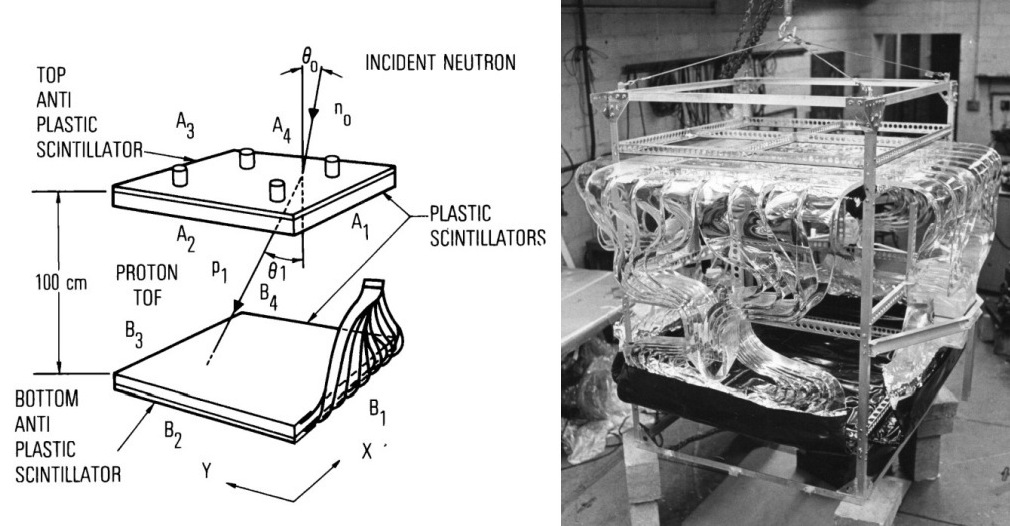

In the scheme at left we can see a basic scheme of the EOSCOR III detector and a picture of the assembled system (click to enlarge).

EOSCOR was composed by two scintillators separated by a 1 meter time-of-flight (TOF) path. Neutrons incident on the detector produced protons via scatterings and interactions in the upper scintillator. TOF is then used to discriminate the slower moving proton recoils from the copious relativistic Compton electrons generated by the atmospheric and cosmic gamma-radiation. Complete protection against data contamination by charged particle induced events is provided by veto counters placed above the upper scintillator and below the lower scintillator. The energy loss in the upper scintillator and the proton's velocity (as determined from the TOF measurement) were combined to give the energy of the proton recoil. Solar neutron events were then characterized by an increase in the neutron counting rate over the atmospheric background, correlated in time with a flare. Since the gondola orientation and the position of the sun were known, the incident neutron energy could be determined from the measured proton energy by simple scattering kinematics.

Details of the balloon flight

Balloon launched on: 9/25/1979 at 12:40 utc
Launch site: Columbia Scientific Balloon Facility, Palestine, Texas, US
Balloon launched by: National Scientific Balloon Facility (NSBF)
Balloon manufacturer/size/composition: Zero Pressure Balloon Winzen 569.542 m3 (12.70 microns - Stratofilm) - SF 379.91-050-NSCR-08
Balloon serial number: W20.11-2-06
Flight identification number: 1169P
End of flight (L for landing time, W for last contact, otherwise termination time): 9/26/1979 at 00:47 utc
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): F 9 h 30 m
Landing site: 9 miles NW of Glen Rose, Texas, US
Payload weight: 906 kgs.

EOSCOR was launched at 12:40 utc on September 25, 1979 from NCAR balloon base of Palestine, Texas. The primary objective of this flight was to search for neutrons emitted during solar activity, particularly in conjunction with large flares. Secondary objective of this flight was an engineering one to test the gondola operation at altitude and to measure directly the background counting rate due to atmospheric neutrons.

After a time at float of 9 hours and 30 minutes the flight was terminated and the payload was recovered 9 miles NW of Glen Rose, Texas.
