Purpose of the flight and payload description
IRIS (IRon ISotopes) was a balloon-borne experiment aimed to measure the isotopic composition of iron nuclei in the cosmic radiation that employed a then new combination of active electronic counters to measure particle speed, trajectory, and charge, and a passive polycarbonate plastic stack to measure range. The instrument was designed and constructed by the Department of Physics of the University of California, Berkeley.

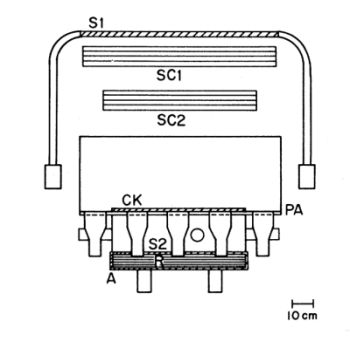

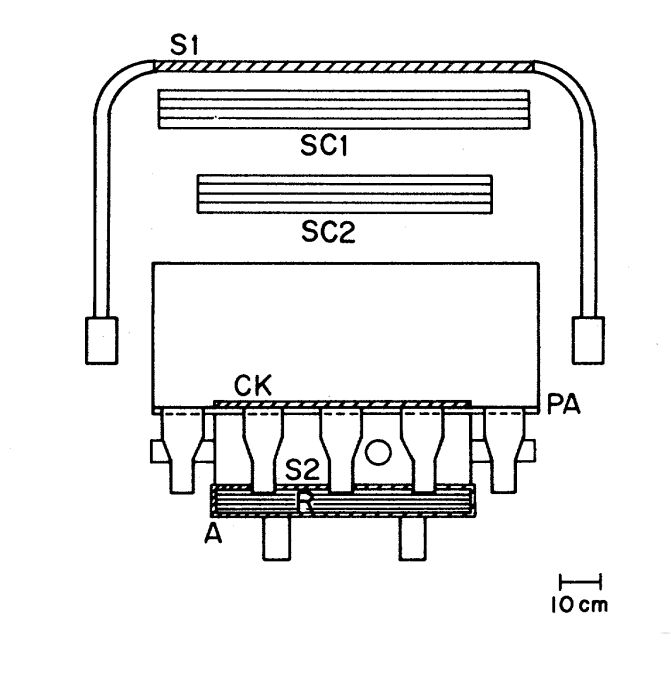

A cross section of the IRIS telescope appears in the figure at left (click to enlarge). Range was measured with a stack, labeled R, consisting of 330 sheets of Lexan polycarbonate plastic track detector each 127 µm thick. Particles which stoped in the range stack were identified with events observed in the active detectors using trajectory information provided by optical spark chambers SCI and SC2. The long lever arm between the spark chambers and the range stack enabled a precise determination of trajectory used in correcting the detector pulse heights and range measurement. A passive aluminum absorber labeled PA provided a uniform nonhydrogenous material in which a large part of the slowing took place. Organic plastic scintillators SI and S2 were used to measure energy loss, and to define the geometry of the instrument. An anticoincidence scintillator, labeled A, eliminated from analysis penetrating particles (for which no range measurement was possible) and particles which suffered nuclear interactions in the telescope, creating light, highly penetrating, charged fragments.
A large-area, precision Cerenkov detector, labeled CK, was used in conjunction with the scintillation measurements to determine particle charge and speed. Mass was determined from the range measurement using range-energy formulae.
The instrument was sealed in a pressurized and insulated aluminum shell.
Details of the balloon flight
Balloon launched on: 9/13/1974
Launch site: Watertown Municipal Airport, South Dakota, US
Balloon launched by: National Scientific Balloon Facility (NSBF)
Balloon manufacturer/size/composition: Zero Pressure Balloon Winzen 733.698 m3 (15.24 microns Stratofilm)
Flight identification number: 105N
End of flight (L for landing time, W for last contact, otherwise termination time): 9/15/1974
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 46 h 25 m
Payload weight: 1656 kgs
The balloon was launched from Watertown, South Dakota on September 13, 1974, remaining in flight for more than 46 hours at an altitude of ~3.15 millibars.
Although valuable engineering information was obtained from this flight, a malfunction in a high-voltage chain prevented the scientific goals from being achieved.
- High resolution Cherenkov and range detectors for balloon-borne cosmic-ray experiment Nuclear Instruments and Methods, Vol. 136, p. 229 (1976)
- National Scientific Balloon Facility Annual Report FY 1975 National Center for Atmospheric Research, November 1975
- The University of California Iron Isotope Experiment International Cosmic Ray Conference, 14th, Munich, West Germany, August 15-29, 1975, Conference Papers. Volume 9
