Purpose of the flight and payload description

The objective of the flight was to fly a system using a superconducting magnetic spectrometer to measure cosmic ray rigidity spectra up to 350 GV. The spectrometer was a development of the NASA-Manned Spacecraft Center with the collaboration of Lockheed Electronics Co. and the Lawrence Radiation Laboratory, Berkeley and was the was the first superconducting magnet experiment to have been flown successfully by balloon. Flights of the apparatus were intended to be used for general cosmic ray surveys, including identification and analysis of all components of the charged particle flux.

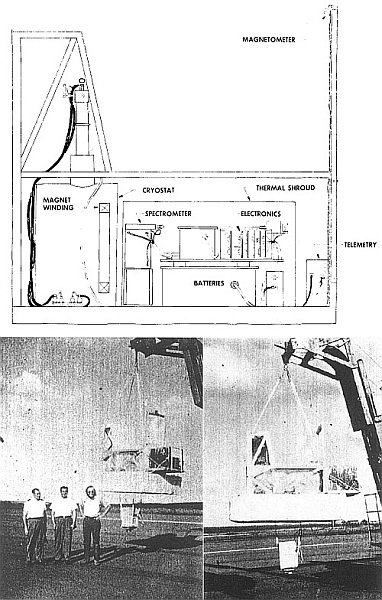

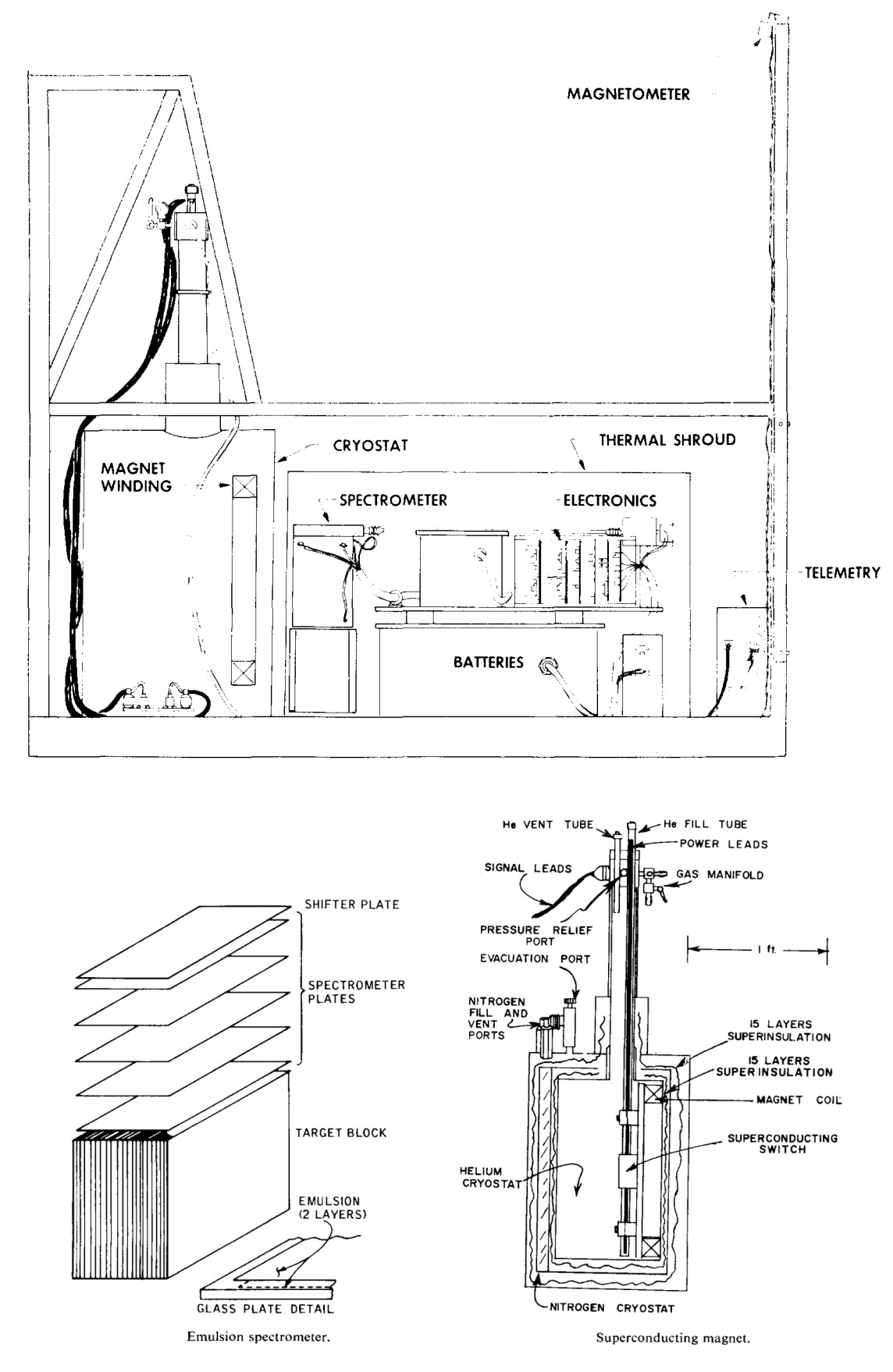

In the image at left can be seen a basic scheme of the instrument (click for more details). It's major components were the emulsion spectrometer for particle identification and rigidity measurement, the superconducting magnet, a temperature controller for maintaining dimensional stability of the emulsion spectrometer, and the telemetry transceiver for controlling the experiment and verifying the conditions under which the emulsions were exposed.

The spectrometer consisted of five glass plates coated on both sides with a 4" x 6" area of nuclear emulsion (Kodak NTB-3). The first and last plates were coated with 200 µm emulsion. The three center plates were coated with 100 µm emulsion. Each plate was approximately 1400 µm thick. The plates were spaced 11/2" apart in a light-tight aluminum box. One-half inch below the lowest glass plate, 20 sheets of 4" x 3" x 300 µm emulsion (Ilford-G5) were arranged in a horizontal plane to form the central stack. These sheets were shifted with respect to the spectrometer when the experiment reached float altitude and again when the magnet was discharged. Beneath the shifted stack there was a 6" x 4" x 6" target block of 600 µm Ilford-G5 emulsion stacked vertically.

The superconducting magnet provided an average 10 kGauss field in the region of the emulsion spectrometer. The 12" inner diameter coil -which produced a magnetomotive force of 0.53 x 10^6 ampturns- was formed of 4431 turns of copper clad single strand niobium-titanium wire insulated by a copper oxide layer. The coil winding formed one end of a 25 1iter liquid helium cryostat. The cryostat was a triple-walled system using a liquid nitrogen dewar as an intermediate heat shield. Both the inner and outer portion of the vacuum space were insulated with 15 layers of aluminized mylar insulation. The dewar's capacity allowed 50 hours of magnet operation without replenishing the helium. To prevent excessive helium boil-off during the flight, the helium dewar pressure was maintained above 8 psi by an automatic regulator. The magnet was launched in the charged condition and discharged in flight by ratio command 1 1/2 hours before flight termination. To discharge the magnet, a diode was switched into the magnet current loop. The diode's forward-bias voltage-drop discharged the magnet in approximately 19 minutes. The magnetic field was monitored in flight by using a magneto-resistive probe within the dewar.

In order to maintain dimensional stability, the spectrometer was temperature controlled using electric heaters. The absolute temperature was regulated to ~ 0.5 °C and temperature gradients were maintained to less than 0.01 °C/cm. Temperatures and temperature gradients were monitored throughout the flight. The onboard telemetry system provided verification of the emulsion exposure conditions (i.e., magnetic field, temperature, etc.) and provided a means of controlling the experiment environment. Commands were available to move the emulsion shifter plates, to turn the magnet off, and to override the temperature control system.

The gondola orientation was of interest because the data was used to study East-West effects. Due to the large magnetic momentum of the magnet, the gondola was coupled to the earth's magnetic field with up to 2 ft.-lbs, of torque. A swivel was provided in the flight train to allow the gondola to point North. In order to verify the gondola orientation, a magnetometer was located at a point about 4 ft. from the magnet at a location where the magnet's field was roughly vertical.

Details of the balloon flight

Balloon launched on: 11/27/1970 at 23:23 local
Launch site: Second Air Brigade, Paraná, Entre Rios, Argentine
Balloon launched by: National Center for Atmospheric Research (NCAR) / CNIE
Balloon manufacturer/size/composition: Zero Pressure Balloon Winzen - 20.360.000 cuft (0.6 mil. Stratofilm)
Balloon serial number: SF 337.37-060-NSC-02 Serial Nº 2
Flight identification number: 62N
End of flight (L for landing time, W for last contact, otherwise termination time): 11/28/1970 at 08:00 local
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 8 h 45 m
Landing site: At 31º 20' S - 64º 50' W, near the town of Icho Cruz, Cordoba province
Campaign: GALAXIA 70
Payload weight: 887 kgs

The balloon was launched by dynamic method from the airstrip of the Second Air Brigade in Parana, Entre Rios at 23:23 local time on November 27, 1970. After a nominal ascent phase the balloon reached a float altitude of 35 kilometers and flew for 8 hours and 25 minutes traveling more than 887 kilometers. The payload was detached from the balloon by telecommand transmited from the Huanquero A-311 chase plane and landed next day at 8:25 local time near Icho Cruz, Cordoba.
