Purpose of the flight and payload description

After the surprise produced in the scientific community by the discovery by a Bristol University team in 1966 of that they had identified an uranium nuclei in the tracks left in a nuclear emulsion exposed in the stratosphere using a balloon, the cosmic ray group of the Washington University in St. Louis started their own project to search for heavy particulates in the primary cosmic radiation. The material in the new detector was simply layers of plastic which were sandwiched between layers of nuclear emulsion. The novelty was that the detectors were spread out over an area of more than 100 square feet which led to being baptized with the descriptive name of Barn-Door. The project was carried out with the collaboration of General Electric Co.

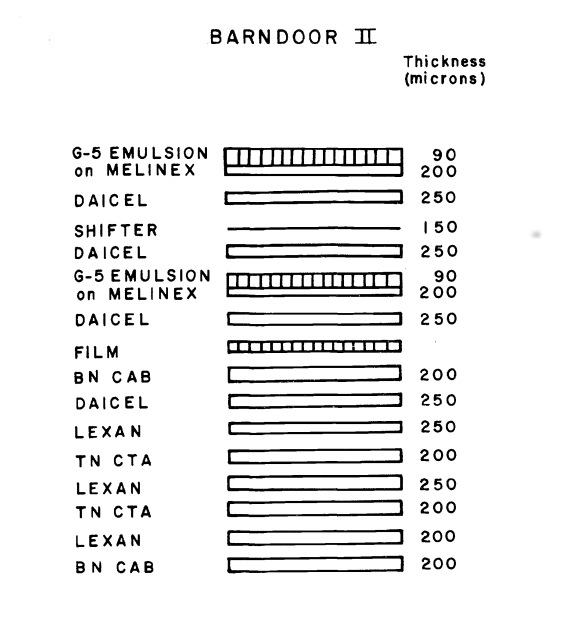

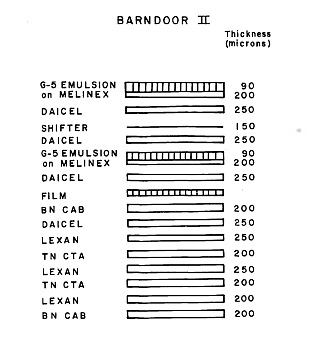

At left we can see a diagram of the composition of the basic detector of the Barndoor II emulsion stack. It used the "sandwich" technique of nuclear emulsions and plastic sheets held rigidly together. The stack covered an area of 13.8 square meters of detector, and was composed by three sandwiches of emulsions and plastics. Set A was moved relative to sets B and C when the balloon reached float altitude and also shortly before descent. The different positions were separated horizontally by two inches, and the overall effect was to define, for each track in the 8 layer, different locations in the A layer which thus distinguished between tracks recorded at ceiling and those detected during the balloon ascent and descent.

For those particles which produced detectable tracks in a plastic the corresponding tracks in the adjacent emulsions and other plastics could then be found and the particles studied in both emulsions and plastics. Since different plastics had different charge thresholds for relativistic particles, the existence of a track in a particular plastic provided an immediate indication of a lower limit to its charge. However, since the rate of ionization also depended on velocity, it was essential that the particle be known to be relativistic for this method of charge identification to be valid.

Details of the balloon flight

Balloon launched on: 5/24/1968 at 20:08 cdt
Launch site: Columbia Scientific Balloon Facility, Palestine, Texas, US
Balloon launched by: National Center for Atmospheric Research (NCAR)
Balloon manufacturer/size/composition: Zero Pressure Balloon Winzen 10.600.000 cuft (0.7/0.7 MIL. Stratofilm)
Balloon serial number: SF 305.86-070-NSC-09 SN: 235
Flight identification number: 398P
End of flight (L for landing time, W for last contact, otherwise termination time): 5/25/1968
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 14 h 15 m
Landing site: In Fabens, Texas, US
Payload weight: 1157 lbs

Original plan for the flight was to spend 40 hours at float. However, an early termination was neccesary due to trajectory of the balloon toward Mexico. At landing, the parachute did not immediately collapse and package dragged causing damage to gondola framework.

In all fourteen hours of flight were considered successful.

External references

Images of the mission

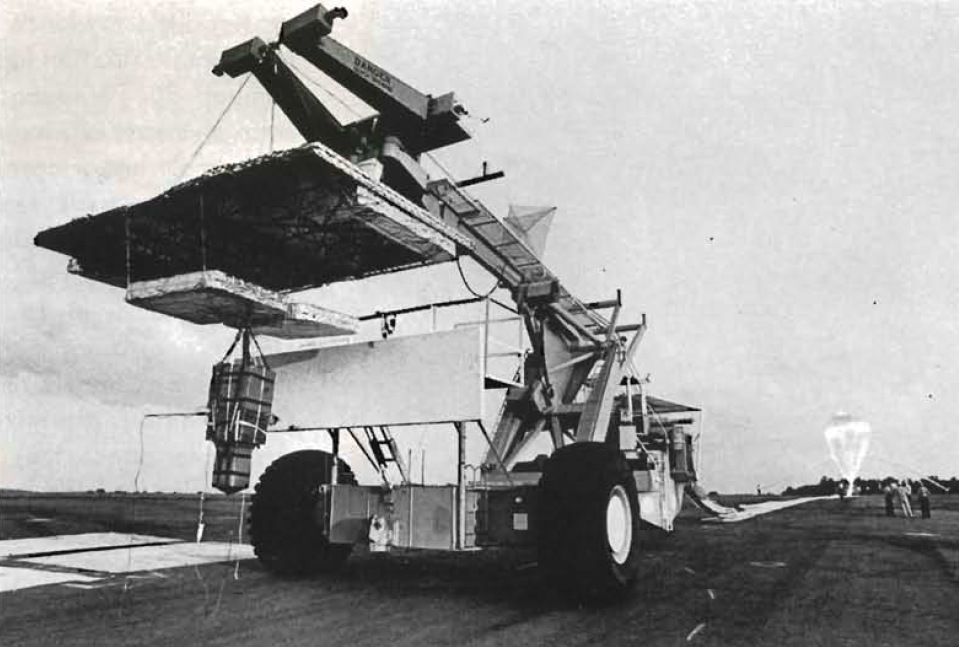

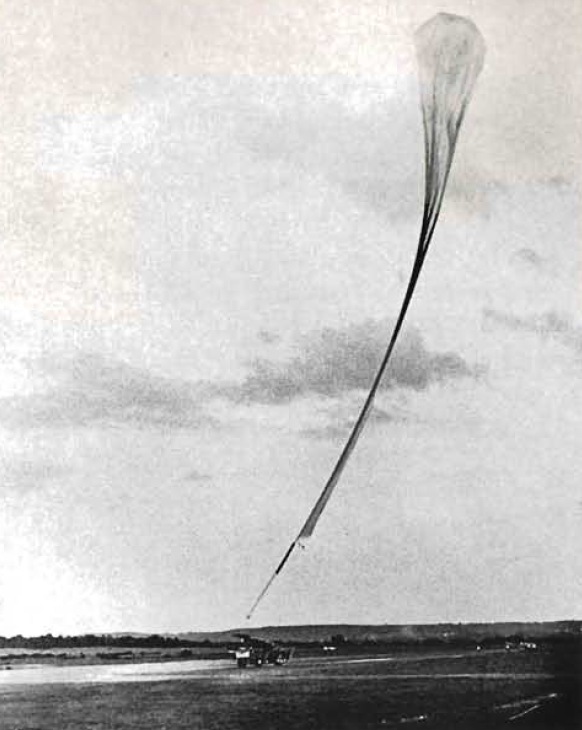

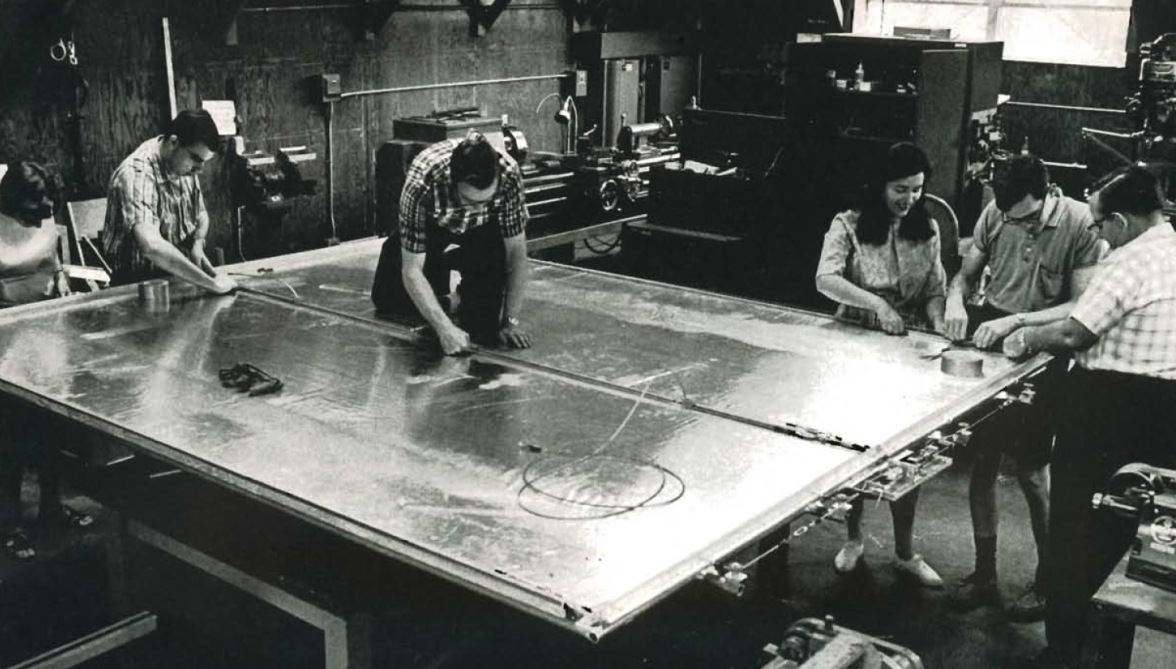

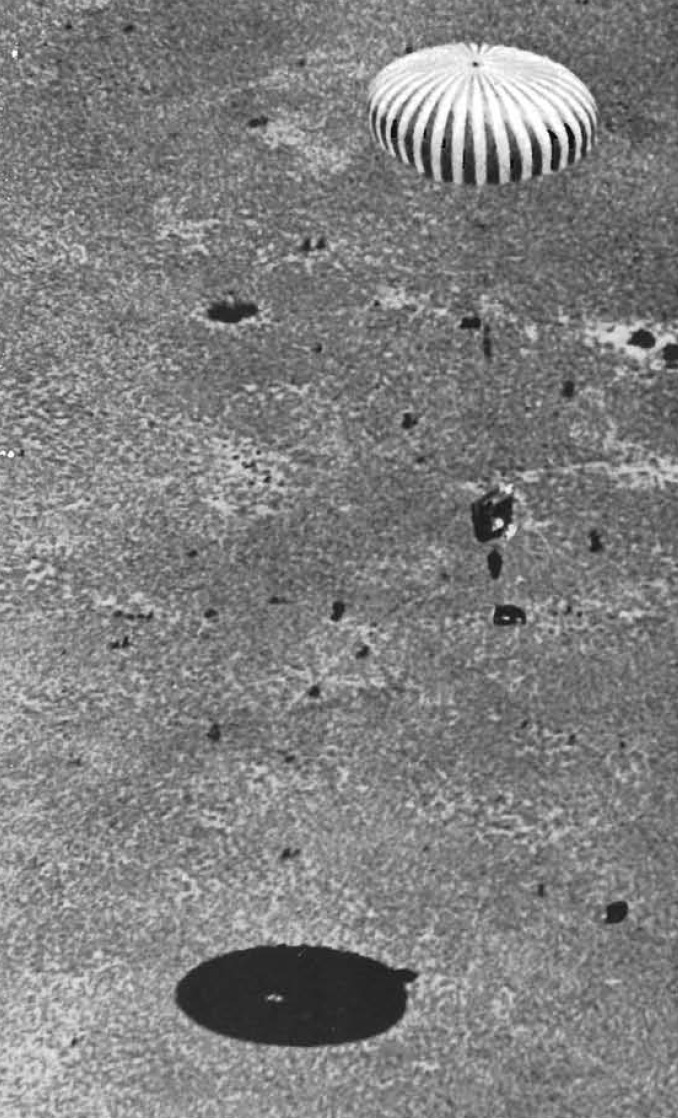

Graduate students of Washington Univ. and their wives pitched in to put finishing touches on Barndoor II before it was covered with layers of plastics and special emulsions Barndoor II, ten by sixteen feet, is shown hanging from The balloon has been released and advances towards Tiny Tim to take the payload. On a mesa near the Mexican border, grazing cattle seem undisturbed by the impending impact of Washington University's
