Purpose of the flight and payload description
This flight was part of the Joint Indo-U.S. Balloon Flight Program - 1961 a cooperative scientific launch campaign carried out between February and April 1961 by scientists from India and the United States in Hyderabad, India. The objective of the extended series of high-altitude balloon flights was to probe the tropical stratosphere using a wide variety of scientific instruments.
The objective of the flight was to collect samples of aerosols in the stratosphere to later measure the vertical distribution of fission products and natural radioactivities and of the size distribution of radioactive aerosols using the SMAC (Sub-Micron Aerosol Collector) a balloon-borne stratospheric sampling system developed by General Mills Inc. under contract with the Air Force Cambridge Research Laboratories (AFCRL).
This air-filter unit used 10 square feet of polystyrene microfiber filter material produced by the Stanford Research Institute in a cylindrical configuration. The polystyrene fibers of the filter ranged from about 0.1 to 1.0 microns diameter allowing 100% collection efficiency for submicron aerosols over a wide range of particle sizes and flow rates. The prime air mover was an axial-fan blower mounted at one end of the housing so as to draw air through the filter drum at a sampling rate of over 1000 standard cubic feet of air per hour and exhaust it through a 50 ft duct suspended below the system to prevent air recirculation. At the other end of the housing, a door opened at altitude and closes upon completion of sampling. At left we can see the unit being prepared for flight and a detail of the complete balloon flight train (click to enlarge).
Two identical series of four flights were performed three weeks apart during the campaign, to altitudes of 65.000 ft, 75.000 ft, 85.000 ft and 95,000 ft. First series took place in March and second in early April. The individual flights on each series were made on nearly consecutive days, and floating altitudes were chosen day by day to afford the best flight conditions in relation to the high-altitude winds. The profile mission was to ascent to the particular floating altitude at a rate of rise of 1.000 feet por minute and to operate the SMAC unit at maximum altitude for periods of 80, 100, 120, and 150 minutes with increasing altitude. Also to telemeter time-altitude, ambient temperature, and sampler pump rpm.
Details of the balloon flight
Balloon launched on: 3/16/1961 at 1:30 utc
Launch site: Begumpet Airport, Secunderabad, India
Balloon launched by: General Mills Inc.
Balloon manufacturer/size/composition: Zero Pressure Balloon General Mills 96-1-1 (2.0 mil)
Balloon serial number: 452-1
Flight identification number: GMI Nº 2523
End of flight (L for landing time, W for last contact, otherwise termination time): 3/16/1961 at 4:28 utc (L)
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 2 h 58 m
Landing site: 35 Miles S of Hyderabad, India

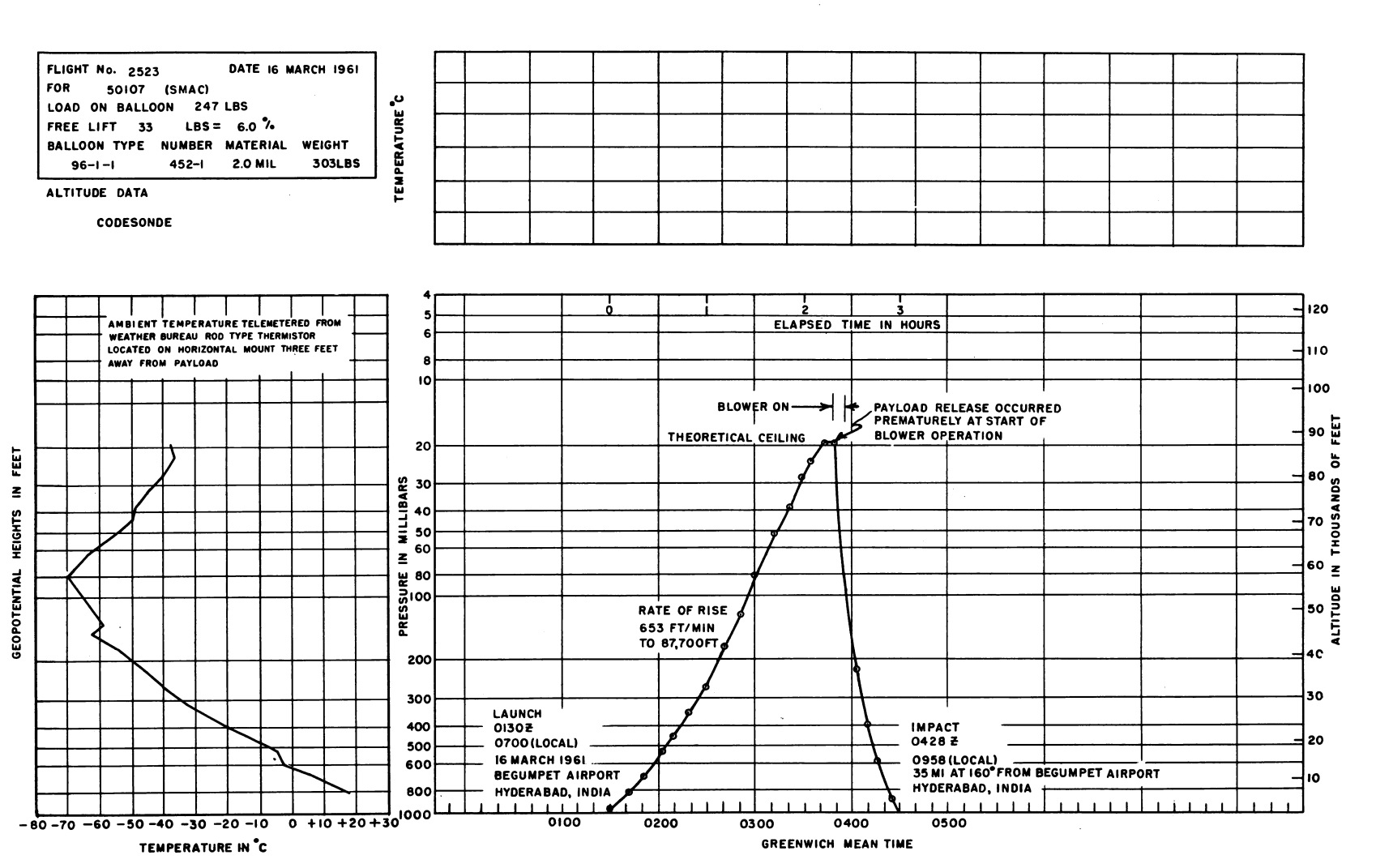

Balloon was launched on March 16th, 1961 at 7:00 local time from Begumpet Airport, near Secunderabad using dynamic method. Rate of rise to 87,700 ft was 653 fpm. SMAC blower operation began at 9:18 but the payload immediately separated from the balloon and descent began by parachute. The blower continued operation until the delay-time pressure altitude of approximately 60,000 ft was reached during descent. Impact occurred at approximately 35 miles south from the launch site. The flight was completely unsuccessful because of an instrumentation malfunction. The equipment had been checked prior to flight by starting the blower and cycling all functions. All functions performed normally at this time. The system was again checked out after flight with no obvious malfunction. Time did not allowed a thorough investigation of the problem at that time and consequently the reason for premature cutdown of this flight was not known.
- Joint Indo-United States Balloon Flight Program - 1961 Scientific Report - Air Force Cambridge Research Laboratories (U.S.) - 1962
