The so called ROCKOON (Rocket-Balloon) technique allowed small rockets to reach higher altitudes by sending it onboard a stratospheric balloon to an altitude of about 70.000 ft where it was fired either by an onboard timer, a pressure switch or by telecommand. The technique was first used in 1952 by Dr. James Van Allen then working at the State University of Iowa.
The main advantage of the rockoon combination was to let the rocket to pass throught the lower and thicker layers of the atmosphere without using its own propulsion power, which then allowed a higher apogee to be reched. The only setback was that once released, the balloons cannot be steered and consequently the rocket's launch direction nor imapct area can be predicted. Thus, for safety reasons, all the Rockoon missions were conducted from small vessels sailing in open waters. This possed an additional advantage as the ships could move with the wind to create a "zero wind condition" ideal to launch the balloons.

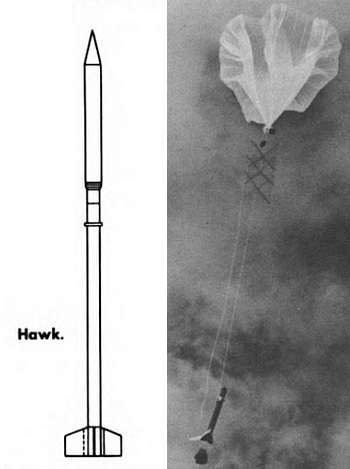

The rockoon firings during the 1957 campaign used an improved version of the LOKI vector denominated HAWK. It was a sounding rocket developed by the Jet Propulsion Laboratory for the Army Ordnance Department, manufactured by Grand Central Rocket Co. and Cooper Development Corp. It was designed to carry a 8.5 pound instrument load to an altitude of about 75 miles. It counted with larger fins than the original LOKI design for stability at high altitudes and had a solid propellant rocket motor with 2.200 lbs of thrust. Its total length was 8.3 ft, diameter 3.5 inches and fin span was 1.1 feet. The Hawk was capable of attaining speeds about 3.000 mph, and altitudes of 70 miles when fired from a balloon floating around 70.000 ft.
Balloon launched on: 8/14/1957
Launch site: USS Plymouth Rock (LSD29) navegando en el Oceano Atlántico (Lat.57.73º N - Lon. 48.15º O)
Balloon launched by:
Balloon manufacturer/size/composition: Zero Pressure Balloon Raven 20.000 cuft
Landing site: Payload no recoverable
The purpose of this flight -as part of the the summer 1957 phase of the International Geophysical year rockoon program of the State University of Iowa- was to investigate the total cosmic ray intensity through and above the atmosphere, as well the physical nature, energy, intensity, and latitude distribution of auroral soft radiation. Complementary the data obtained on the fluctuations of cosmic ray intensity was to be correlated with solar and magnetic data from ground stations.
The balloon was launched at 20:00 utc on August 14th, 1957 from the deck of the USS Plymouth Rock while sailing in the Arctic sea at 56º13'N 48º46'W. The rocket was fired at an altitude of 76.100 ft 79 minutes later to attain an estimated apogee of 55 miles in 284 seconds of flight. Good data was obtained.
